| Basic Information |
| Usage |

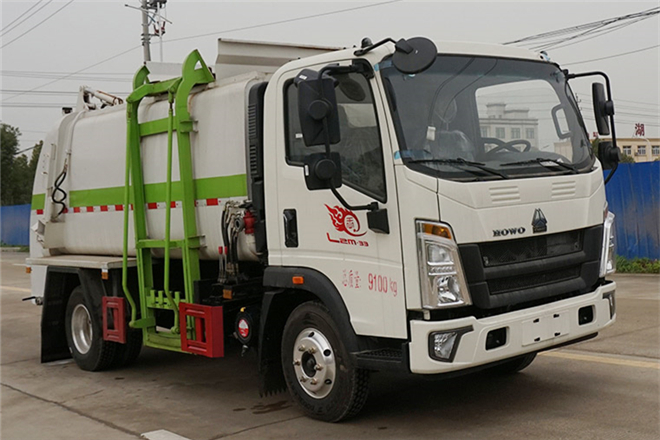

Refuse Collector |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 national Ⅵ emission standards |
| Length |
6050mm |
| Width |
2200,2250,2300mm |
| Height |
2650,2800mm |
| Curb Weight |
5800kg |
| Gross Weight |
9100kg |
| Seats |
3,2 |
| Max Speed |
95km/h |
| Chassis |
| Chassis Model |
ZZ1097H3815F191Z |
| Front/Rear Overhang |
1160/1610,1180/1590mm |
| Number of Leaf Springs |
3/3+2,2/2+1,2/2+2,3/4+3,2/3+2,1/1+1,11/9+7,11/11+7,3/5+3 |
| Number of Axles |
2 |
| Wheelbase |
3280,3360,3600,3800mm |
| Axle Load |
3300/5800kg |
| Front Wheel Track |
1610,1776,1796,1815mm |
| Rear Wheel Track |
1555,1595,1645,1695,1795mm |
| Approaching/Departuring Angle |
18/17° |
| Tire |
| Number of Tires |
6 |
| Tire |
7.50R16LT,8.25R16LT,215/75R17.5,205/75R17.5,235/75R17.5 |
| Engine |
| Model |
D25TCIF1,WP2.3NQ130E61,D30TCIF1,NV30-C6B,WP3NQ160E61,F2.8NS6B156,D40TCIF1,CY4SK661,WP4.1NQ190E61,F3.8NS6B190 |
| Power |
110,96,125,120,118,115,135,135,140,140kW |
| Brand |
Kunming Yunnei Power Co., Ltd.;Weichai Power Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Weichai Power Co., Ltd.;Beijing Foton Cummins Engine Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Weichai Power Co., Ltd.;Beijing Foton Cummins Engine Co., Ltd. |
| Displacement |
2499,2289,2977,3089,8533,1516,5657,8613,4682,1096ml |
