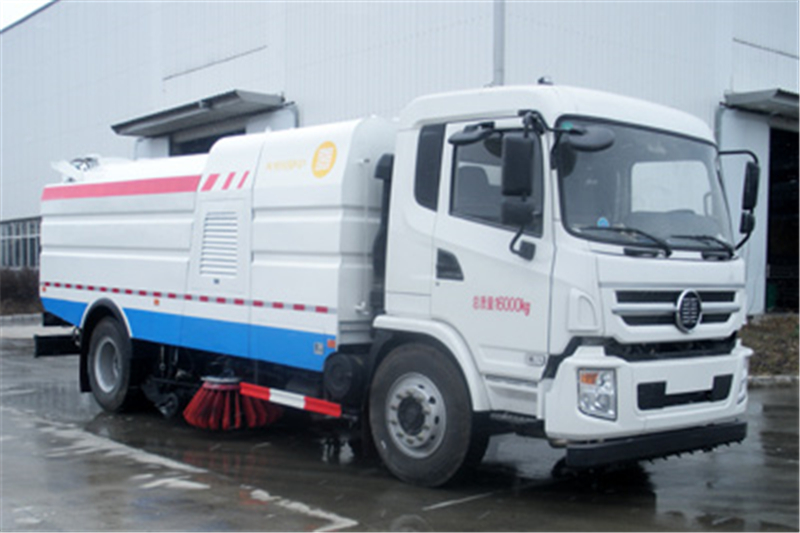

Chufeng HQG5160TXSGD5 Cleaning Sweeper

Chufeng HQG5160TXSGD5 Cleaning Sweeper
Chufeng HQG5160TXSGD5 Cleaning Sweeper
Basic Information
Usage Vacuum Sweeper
Fuel Type Diesel
Emission Standard GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length 7570,7370,8200,9000mm
Width 2490mm
Height 3050,3300,3460mm
Curb Weight 11205kg
Gross Weight 16000kg
Seats 3
Max Speed 80km/h
Chassis Model HQG1160GD5
Front/Rear Overhang 1450/2170,1250/2170,1450/2250,1250/2450,1450/2750,1250/2950,1450/2350,1250/2550mm
Number of Leaf Springs 9/10+8,10/11+8
Number of Axles 2
Wheelbase 3950,4500,4800,5200mm
Axle Load 6000/10000kg
Front Wheel Track 1810,1940,2040mm
Rear Wheel Track 1800,1860,1860mm
Approaching/Departuring Angle 17/15,17/13,17/12°
Number of Tires 6
Tire 10.00-20 16PR,10.00R20 16PR,11R22.5 16PR,275/80R22.5 16PR
Model Brand Power Displacement
WP6.180E50 Weichai Deutz Engine Co., Ltd. 132kW 6750ml
YC6JA180-50 Guangxi Yuchai Machinery Co., Ltd. 132kW 6870ml
YC4S170-50 Guangxi Yuchai Machinery Co., Ltd. 125kW 3767ml
