| Basic Information | |||

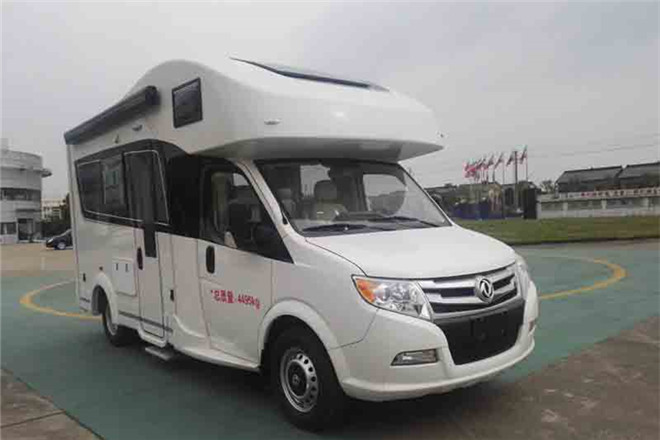

| Usage | Recreational Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5965mm | ||
| Width | 2270mm | ||
| Height | 2960mm | ||
| Curb Weight | 4080kg | ||
| Gross Weight | 4495kg | ||
| Seats | 4,5,6 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | EQ1042WABD | ||
| Front/Rear Overhang | 915/1200mm | ||
| Number of Leaf Springs | -/4 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3850mm | ||
| Axle Load | 2100/2395kg | ||
| Front Wheel Track | 1734mm | ||
| Rear Wheel Track | 1584,1684mm | ||
| Approaching/Departuring Angle | 20/16° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 215/75 R16C | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ZD30D14-5N | Dongfeng Light Engine Co., Ltd. | 105kW | 2953ml |
| ZD25D14-5N | Dongfeng Light Engine Co., Ltd. | 100kW | 2499ml |
