| Basic Information | |||

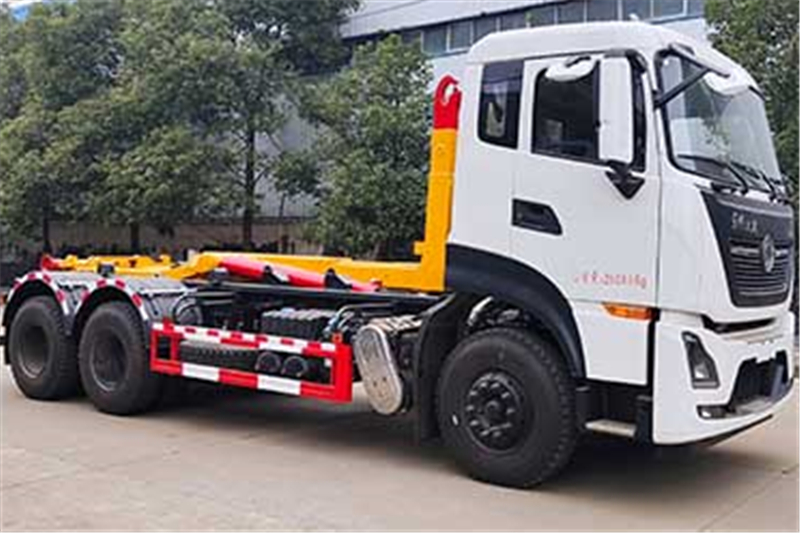

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005, GB17691-2018 national Ⅵ emission standards | ||
| Length | 8460,9460mm | ||
| Width | 2500,2550mm | ||
| Height | 3150,3190,3370mm | ||
| Curb Weight | 11500kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | DFH1250D4 | ||
| Front/Rear Overhang | 1480/1280,1500/1260mm | ||
| Number of Leaf Springs | 3/10,3/4,9/10 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4350+1350,5350+1350,5700+1350,4600+1350,4800+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 2010,2040,2070mm | ||
| Rear Wheel Track | 1860/1860,1880/1880mm | ||
| Approaching/Departuring Angle | 20/13,20/12° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 295/80R22.5 18PR,11.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D6.7NS6B290 | Dongfeng Cummins Engine Co., Ltd. | 213kW | 6700ml |
| DDi75E350-60 | Dongfeng Commercial Vehicle Co., Ltd. | 257kW | 7500ml |
| DDi75E300-60 | Dongfeng Commercial Vehicle Co., Ltd. | 220kW | 7500ml |
