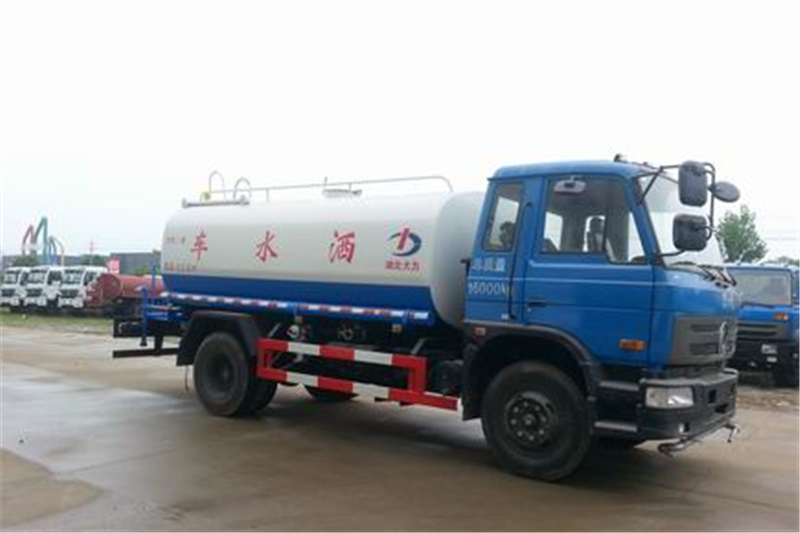

Hubei Dali DLQ5168GSSL5 Sprinkler

Basic Information
Usage	Street Sprinkler
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	7500,8050mm
Width	2480mm
Height	3150mm
Curb Weight	5605kg
Gross Weight	15800kg
Seats	3
Max Speed	90km/h
Chassis
Chassis Model	EQ1168GLJ4
Front/Rear Overhang	1250/2300,1450/2100mm
Number of Leaf Springs	9/11+8,8/10+8,8/11+8,9/10+8,3/4+3
Number of Axles	2
Wheelbase	3650,3800,3950,4200,4500,4700,5100,5600,5200mm
Axle Load	5600/10200kg
Front Wheel Track	1910,1760,1940,1960,1810mm
Rear Wheel Track	1860,1690,1750,1800mm
Approaching/Departuring Angle	28/18°
Tire
Number of Tires	6
Tire	10.00-20 16PR,10.00R20 16PR,9.00R20 16PR,10R22.5 16PR,275/80R22.5 16PR
Engine
Model	Brand	Power	Displacement
YC6J180-50	Guangxi Yuchai Machinery Co., Ltd.	132kW	6500ml
YC4EG160-50	Guangxi Yuchai Machinery Co., Ltd.	118kW	4730ml
ISD185 50	Dongfeng Cummins Engine Co., Ltd.	136kW	4500ml
CA4DLD-15E5	FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant	112kW	4400ml
ISB170 50	Dongfeng Cummins Engine Co., Ltd.	125kW	5900ml
ISB190 50	Dongfeng Cummins Engine Co., Ltd.	140kW	5900ml
YC4E160-56	Guangxi Yuchai Machinery Co., Ltd.	118kW	4260ml
YC6JA180-50	Guangxi Yuchai Machinery Co., Ltd.	132kW	6870ml
CY4SK151	Dongfeng Chaoyang Diesel Co., Ltd.	125kW	3856ml
YCD4J4S-150	Guangxi Yuchai Machinery Co., Ltd.	110kW	4329ml
ISD160 50	Dongfeng Cummins Engine Co., Ltd.	118kW	4500ml
ISD180 50	Dongfeng Cummins Engine Co., Ltd.	132kW	4500ml
YCD4D4S-140	Guangxi Yuchai Machinery Co., Ltd.	105kW	4156ml
YC4EG185-50	Guangxi Yuchai Machinery Co., Ltd.	136kW	4730ml
YC4FA130-50	Guangxi Yuchai Machinery Co., Ltd.	95kW	2982ml
YN38CRE1	Kunming Yunnei Power Co., Ltd.	95kW	3760ml
