| Basic Information | |||

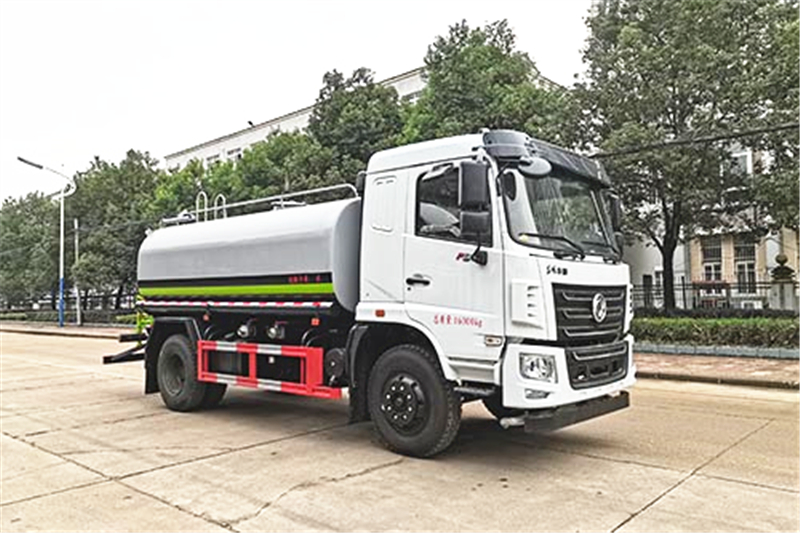

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 7600,7750mm | ||
| Width | 2500mm | ||
| Height | 3300mm | ||
| Curb Weight | 6200kg | ||
| Gross Weight | 16000kg | ||
| Seats | 2,3 | ||
| Max Speed | 88km/h | ||
| Chassis | |||
| Chassis Model | EQ1160GL6DJ | ||
| Front/Rear Overhang | 1250/2550,1450,2350,1250/2400,1450/2200mm | ||
| Number of Leaf Springs | 9/11+8,9/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3950,4200,4500,4700,5100,5600mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1820,1920,1950mm | ||
| Rear Wheel Track | 1800,1860mm | ||
| Approaching/Departuring Angle | 17/18° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YCY30165-60 | Guangxi Yuchai Machinery Co., Ltd. | 121kW | 2970ml |
| YCS04200-68 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 4156ml |
| D25TCIF1 | Kunming Yunnei Power Co., Ltd. | 110kW | 2499ml |
| D30TCIF1 | Kunming Yunnei Power Co., Ltd. | 125kW | 2977ml |
| YCS04160-68 | Guangxi Yuchai Machinery Co., Ltd. | 118kW | 4156ml |
| YCS04180-68 | Guangxi Yuchai Machinery Co., Ltd. | 132kW | 4156ml |
