| Basic Information | |||

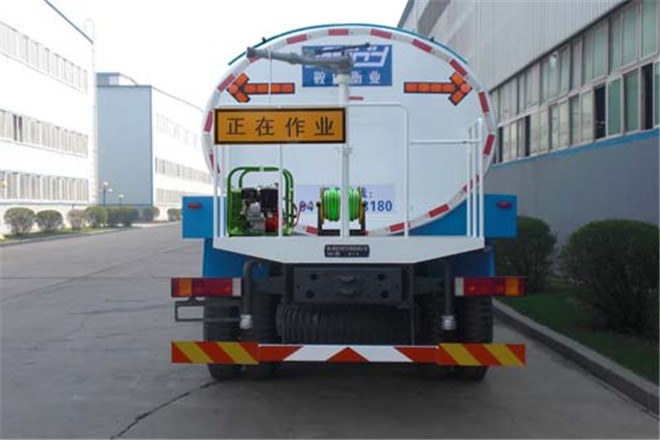

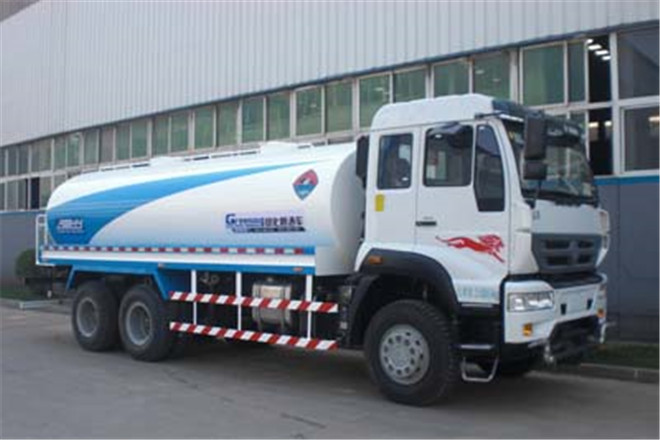

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅳ emission standards, GB3847-2005 | ||
| Length | 9290mm | ||
| Width | 2500mm | ||
| Height | 3070mm | ||
| Curb Weight | 11020kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | ZZ1251M4441D1 | ||
| Front/Rear Overhang | 1320/2270mm | ||
| Number of Leaf Springs | 4/-,10/-,10/12 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4350+1350mm | ||
| Axle Load | 7000/18000kg | ||
| Front Wheel Track | 2022,2041mm | ||
| Rear Wheel Track | 1830/1830mm | ||
| Approaching/Departuring Angle | 18/17° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00-20,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR,12R22.5 16PR,295/80R22.5 16PR,315/80R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D10.28-40 | China National Heavy Duty Truck Group Co., Ltd. | ||
| D10.31-40 | China National Heavy Duty Truck Group Co., Ltd. | ||
