| Basic Information | |||

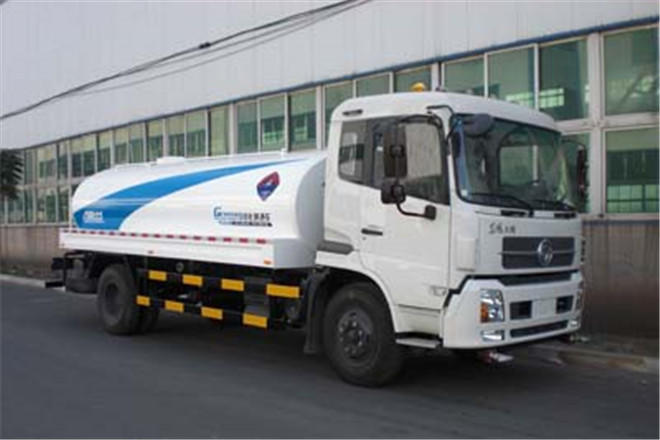

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2005(national Ⅳ emission standards) | ||
| Length | 8610mm | ||
| Width | 2430mm | ||
| Height | 2760mm | ||
| Curb Weight | 6440kg | ||
| Gross Weight | 16000kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | DFL1160BX5 | ||
| Front/Rear Overhang | 1430/2480mm | ||
| Number of Leaf Springs | 8/10+8,7/9+6,9/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 5000,4700,4500mm | ||
| Axle Load | 6000/10000kg | ||
| Front Wheel Track | 1880,1920mm | ||
| Rear Wheel Track | 1860,1800,1820mm | ||
| Approaching/Departuring Angle | 20/11° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00-20,10.00R20,9.00-20,9.00R20,275/80R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISDe210 40 | Dongfeng Cummins Engine Co., Ltd. | ||
| ISDe180 40 | Dongfeng Cummins Engine Co., Ltd. | ||
| ISDe185 40 | Dongfeng Cummins Engine Co., Ltd. | ||
| EQH180-40 | Dongfeng Commercial Vehicle Co., Ltd. | ||
| ISB180 40 | Dongfeng Cummins Engine Co., Ltd. | ||
| ISB210 40 | Dongfeng Cummins Engine Co., Ltd. | ||
