| Basic Information | |||

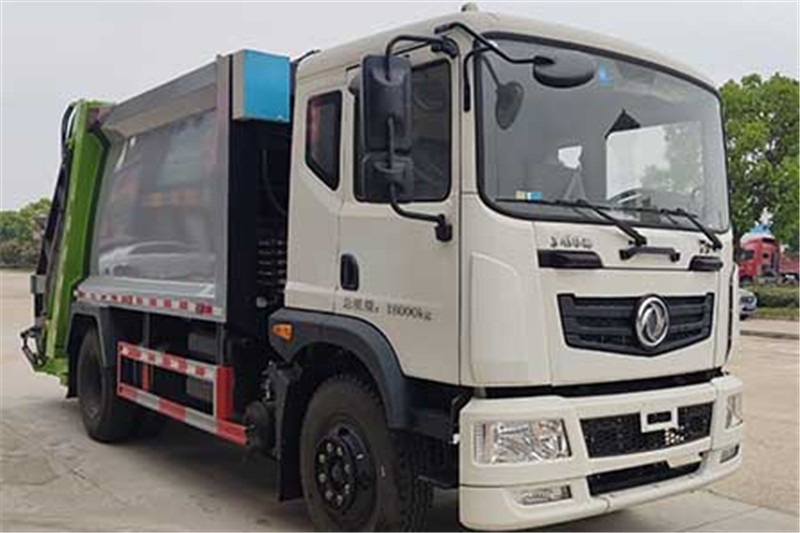

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 8500,7950,8940,8390,8790,8240mm | ||
| Width | 2550mm | ||
| Height | 3280mm | ||
| Curb Weight | 10500kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 88km/h | ||
| Chassis | |||
| Chassis Model | EQ1180GL6DJ | ||
| Front/Rear Overhang | 1450/2550mm | ||
| Number of Leaf Springs | 9/11+8,3/4+3,9/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3950,4200,4500,4700,5100mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1875,1910,1950,1965,1970,2020,2050mm | ||
| Rear Wheel Track | 1820,1870mm | ||
| Approaching/Departuring Angle | 25/21° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20 18PR,295/80R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 154kW | 6200ml |
| B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6200ml |
| YCS04200-68 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 4156ml |
| YCS06200-60 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 6234ml |
