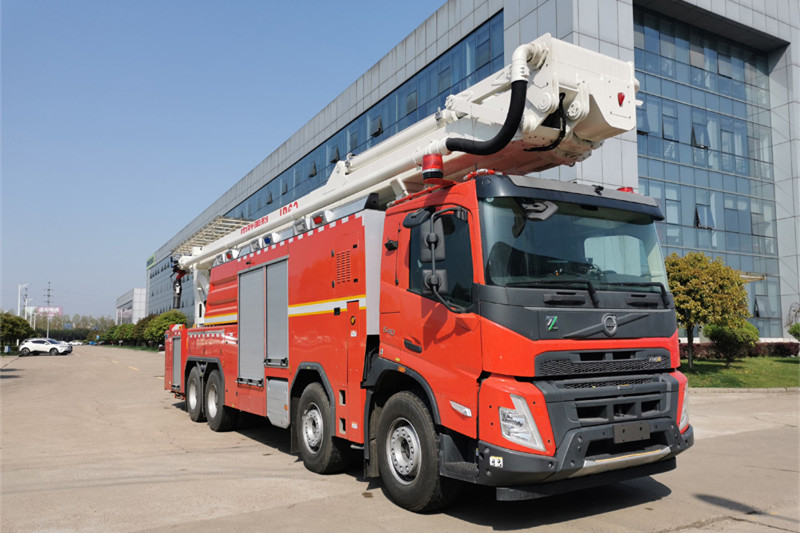

Zoomlion ZLF5423JXFJP60 Water Tower Fire Truck
| Basic Information |
| Usage |
Fire Extinguishing Truck |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 national Ⅵ emission standards |
| Length |
12190mm |
| Width |
2520mm |
| Height |
3920mm |
| Curb Weight |
34050kg |
| Gross Weight |
42200kg |
| Seats |
2 |
| Max Speed |
85km/h |
| Chassis |
| Chassis Model |
FM540 84R B |
| Front/Rear Overhang |
1520/2770mm |
| Number of Leaf Springs |
3/3/3 |
| Number of Axles |
4 |
| Wheelbase |
1995+4205+1370mm |
| Front Wheel Track |
2109/2109mm |
| Rear Wheel Track |
1837/1837mm |
| Approaching/Departuring Angle |
16/12° |
| Tire |
| Number of Tires |
12 |
| Tire |
385/65R22.5/315/80R22.5 |
| Engine |
| Model |
D13K540 EU6 |
| Power |
406kW |
| Brand |
Volvo Power System Co., Ltd. |
| Displacement |
12777ml |
