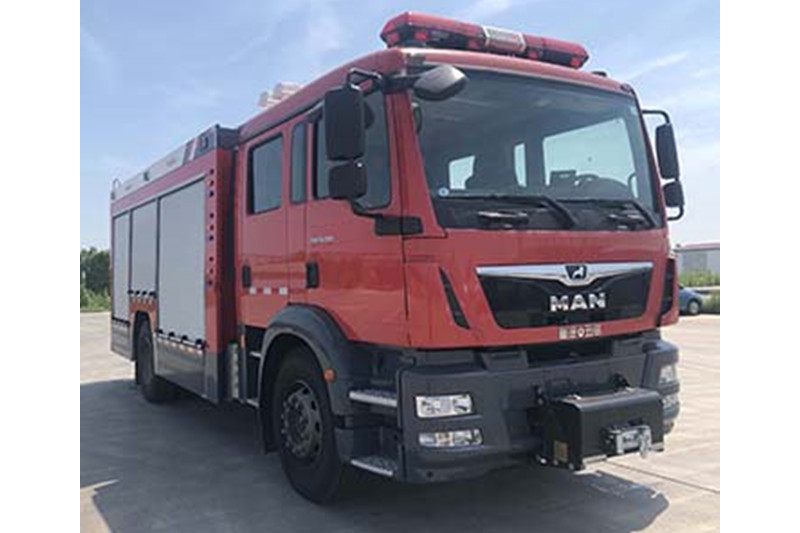

Taian Wuyue TAZ5165GXFAP40 Compressed Air Foam Fire Truck
| Basic Information |
| Usage |
Fire Extinguishing Truck |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
8560mm |
| Width |
2500mm |
| Height |
3480mm |
| Curb Weight |
11050kg |
| Gross Weight |
15600kg |
| Seats |
2+4 |
| Max Speed |
95km/h |
| Chassis |
| Chassis Model |
TGM18.290 |
| Front/Rear Overhang |
1400/2370mm |
| Number of Leaf Springs |
1/3 |
| Number of Axles |
2 |
| Wheelbase |
4425mm |
| Axle Load |
5400/10200kg |
| Front Wheel Track |
2066mm |
| Rear Wheel Track |
1802mm |
| Approaching/Departuring Angle |
19/12° |
| Tire |
| Number of Tires |
6 |
| Tire |
295/80R22.5 18PR |
| Engine |
| Model |
D0836LFLAL |
| Power |
216kW |
| Brand |
Germany MAN Commercial Vehicle Co., Ltd. |
| Displacement |
6871ml |
