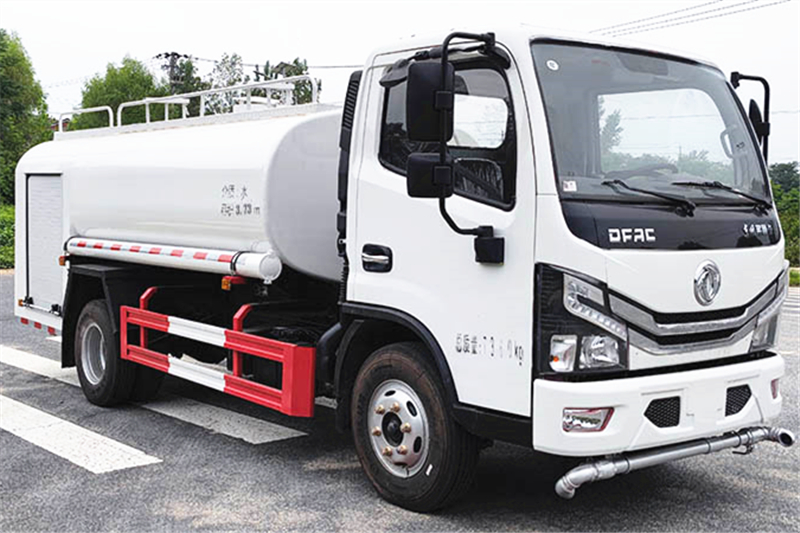

Hubei Dali DLQ5071GSSCC6 Sprinkler

Hubei Dali DLQ5071GSSCC6 Sprinkler
Hubei Dali DLQ5071GSSCC6 Sprinkler
Views:0
Basic Information
Usage Street Sprinkler
Fuel Type Diesel
Emission Standard GB17691-2018 national Ⅵ emission standards
Length 6235mm
Width 2000mm
Height 2360mm
Curb Weight 3670kg
Gross Weight 7360kg
Seats 2
Max Speed 110km/h
Chassis
Chassis Model EQ1075SJ3CDF
Front/Rear Overhang 1055/1872mm
Number of Leaf Springs 6/6+5,3/3+3,5/4+3,6/4+3,6/5+2,6/3+3,3/6+5,3/3+2,2/2
Number of Axles 2
Wheelbase 2700,2950,3308mm
Axle Load 2640/4720kg
Front Wheel Track 1525,1519,1503,1613mm
Rear Wheel Track 1498,1516,1586,1670,1650,1800mm
Approaching/Departuring Angle 27.7/13°
Tire
Number of Tires 6
Tire 7.00R16,7.00R16LT,7.00R16LT 14PR,7.50R16LT 16PR
Engine
Model Brand Power Displacement
CY4BK461 Dongfeng Chaoyang Diesel Co., Ltd. 95kW 3707ml
CA4DB1-11E6 China FAW Group Co., Ltd. 81kW 2207ml
CY4BK161 Dongfeng Chaoyang Diesel Co., Ltd. 105kW 3856ml
D20TCIF1 Kunming Yunnei Power Co., Ltd. 93kW 1999ml
Q28-130E60 Anhui Quanchai Power Co., Ltd. 96kW 2800ml
H20-120E60 Anhui Quanchai Power Co., Ltd. 90kW 2000ml
CA4DB1-13E6 China FAW Group Co., Ltd. 95kW 2207ml
YCY24140-60 Guangxi Yuchai Machinery Co., Ltd. 103kW 2360ml
D20TCIF11 Kunming Yunnei Power Co., Ltd. 93kW 1999ml
Q23-115E60 Anhui Quanchai Power Co., Ltd. 85kW 2300ml
ZD30D16-6N Dongfeng Light Engine Co., Ltd. 120kW 2953ml
M9T-600 Dongfeng Light Engine Co., Ltd. 105kW 2298ml
Q23-136E60 Anhui Quanchai Power Co., Ltd. 100kW 2300ml
