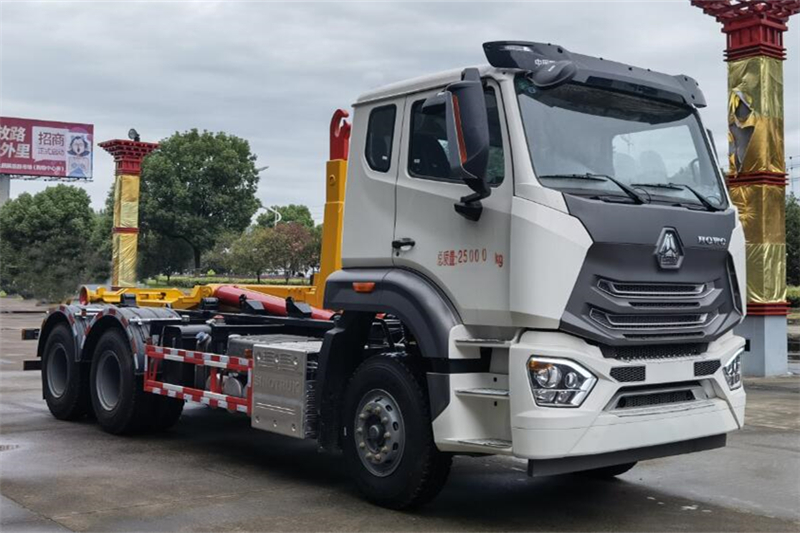

Hubei Dali DLQ5252ZXXLZ6 Detachable Container Garbage Collector

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2018 national Ⅵ emission standards
Length	8500mm
Width	2550mm
Height	3180mm
Curb Weight	11500kg
Gross Weight	25000kg
Seats	2,3
Max Speed	89km/h
Chassis
Chassis Model	ZZ1257V464JF1
Front/Rear Overhang	1550/1275mm
Number of Leaf Springs	3/-,3/-/-,3/1+-/1+-,3/2+-/2+-,3/4,3/5,3/12,4/-,4/-/-,4/1+-/1+-,4/2+-/2+-,4/5,4/12,9/-,9/-/-,9/12,10/-,10/-/-,10/12
Number of Axles	3
Wheelbase	4325+1350,4300+1400,4600+1350,4575+1400mm
Axle Load	7000/18000(two axles)kg
Front Wheel Track	1996,2022,2041mm
Rear Wheel Track	1830/1830,1860/1860mm
Approaching/Departuring Angle	17/2°
Tire
Number of Tires	10
Tire	11.00R20 18PR,12.00R20 16PR,12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR/315/80R22.5 16PR
Engine
Model	Brand	Power	Displacement
WP10H400E62	Weichai Power Co., Ltd.	294kW	9500ml
WP9H350E62	Weichai Power Co., Ltd.	257kW	8800ml
MC07.29-60	China National Heavy Duty Truck Group Co., Ltd.	213kW	6870ml
MC07.27-60	China National Heavy Duty Truck Group Co., Ltd.	202kW	6870ml
MC07H.33-60	China National Heavy Duty Truck Group Co., Ltd.	240kW	7360ml
WP8.350E61	Weichai Power Co., Ltd.	257kW	7800ml
MC07.31-60	China National Heavy Duty Truck Group Co., Ltd.	228kW	6870ml
MC07H.35-60	China National Heavy Duty Truck Group Co., Ltd.	257kW	7360ml
MC11.40-61	China National Heavy Duty Truck Group Co., Ltd.	297kW	10518ml
WP7H270E62	Weichai Power Co., Ltd.	199kW	6800ml
WP7H320E62	Weichai Power Co., Ltd.	235kW	6800ml
WP7H300E62	Weichai Power Co., Ltd.	221kW	6800ml
