| Basic Information | |||

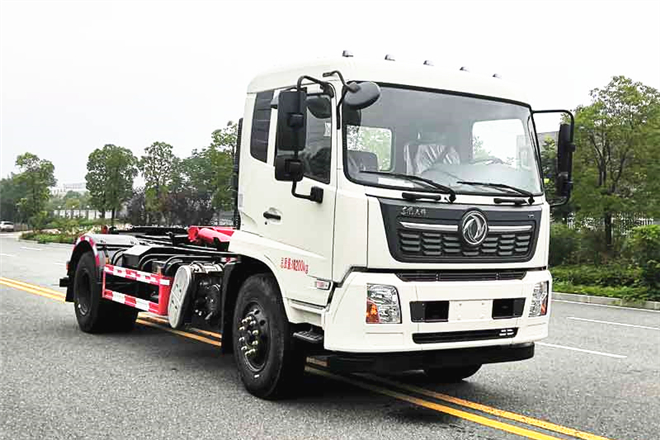

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005, GB17691-2018 national Ⅵ emission standards | ||
| Length | 6750,7300,7500mm | ||
| Width | 2470,2500mm | ||
| Height | 3010,3150mm | ||
| Curb Weight | 6920kg | ||
| Gross Weight | 16200kg | ||
| Seats | 3,2 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | DFH1160BX1 | ||
| Front/Rear Overhang | 1430/1370mm | ||
| Number of Leaf Springs | 11/11+10,11/10+8,8/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3950,4500,4700mm | ||
| Axle Load | 5600/10600kg | ||
| Front Wheel Track | 1815,1934,1860mm | ||
| Rear Wheel Track | 1800,1820mm | ||
| Approaching/Departuring Angle | 17/19° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,10.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DDi50E220-60 | Dongfeng Commercial Vehicle Co., Ltd. | 162kW | 5000ml |
| D4.0NS6B185 | Dongfeng Cummins Engine Co., Ltd. | 136kW | 4000ml |
