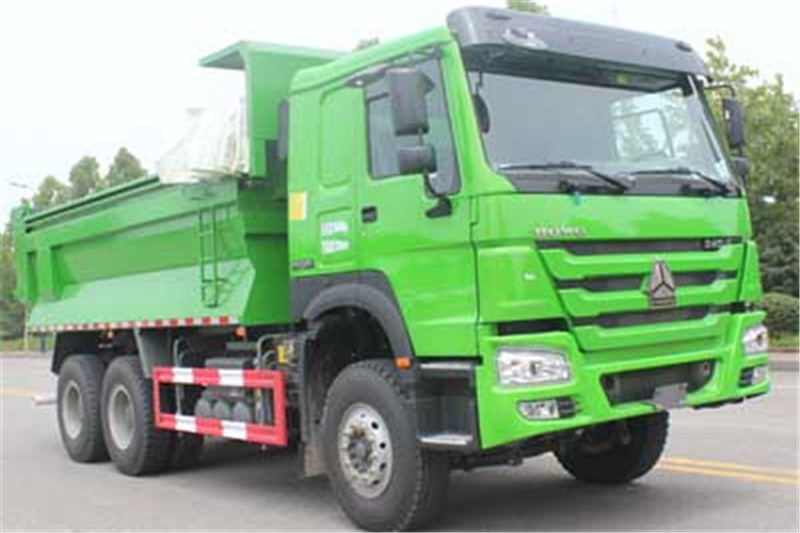

Taian Wuyue TAZ5255ZLJC Garbage Dump Truck

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	8610,8370,8545mm
Width	2500,2550mm
Height	3440mm
Curb Weight	12100kg
Gross Weight	25000kg
Seats	2
Max Speed	80km/h
Chassis
Chassis Model	ZZ3257N3847E1
Front/Rear Overhang	1500/1935,1500/1695,1500/1870mm
Number of Leaf Springs	10/12,10/-
Number of Axles	3
Wheelbase	3825+1350mm
Axle Load	7000/18000(two axles)kg
Front Wheel Track	2022,2041mm
Rear Wheel Track	1830/1830mm
Approaching/Departuring Angle	16/19°
Tire
Number of Tires	10
Tire	295/80R22.5,12.00R20 16PR,11.00R20,12R22.5
Engine
Model	Brand	Power	Displacement
D10.31-50	China National Heavy Duty Truck Group Co., Ltd.	228kW	9726ml
D10.34-50	China National Heavy Duty Truck Group Co., Ltd.	249kW	9726ml
D10.38-50	China National Heavy Duty Truck Group Co., Ltd.	276kW	9726ml
MC09.34-50	China National Heavy Duty Truck Group Co., Ltd.	250kW	8765ml
MC09.36-50	China National Heavy Duty Truck Group Co., Ltd.	265kW	8765ml
MC09.38-50	China National Heavy Duty Truck Group Co., Ltd.	276kW	8765ml
MC09.40-50	China National Heavy Duty Truck Group Co., Ltd.	294kW	8765ml
MC11.40-50	China National Heavy Duty Truck Group Co., Ltd.	297kW	10518ml
MC11.44-50	China National Heavy Duty Truck Group Co., Ltd.	327kW	10518ml
WP10H400E50	Weichai Power Co., Ltd.	294kW	9500ml
