| Basic Information | |||

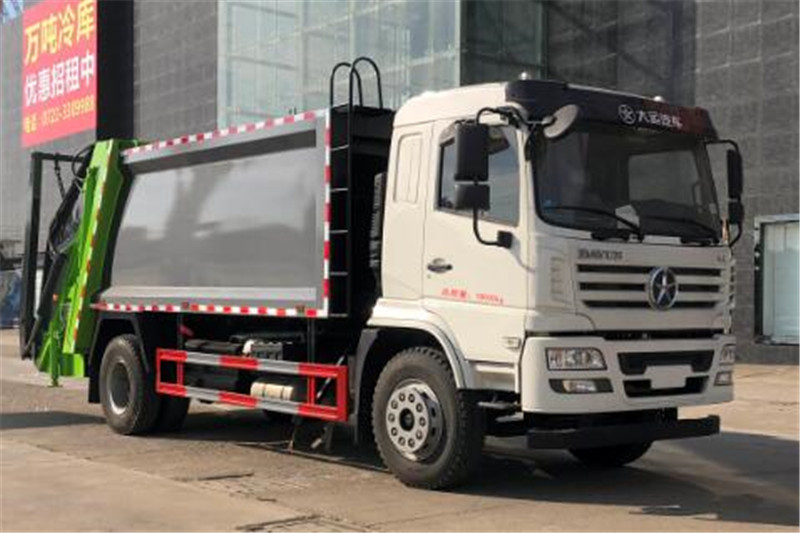

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 6860mm | ||
| Width | 2250mm | ||
| Height | 2860mm | ||
| Curb Weight | 6700kg | ||
| Gross Weight | 9900kg | ||
| Seats | 3 | ||
| Max Speed | 103km/h | ||
| Chassis | |||
| Chassis Model | EQ1100SJ8EDF | ||
| Front/Rear Overhang | 1114/2200mm | ||
| Number of Leaf Springs | 8/10+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3390,3600mm | ||
| Axle Load | 3600/6300kg | ||
| Front Wheel Track | 1774,1748mm | ||
| Rear Wheel Track | 1618mm | ||
| Approaching/Departuring Angle | 19/18° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 215/75R17.5,245/70R19.5 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D25TCIF1 | Kunming Yunnei Power Co., Ltd. | 110kW | 2499ml |
