| Basic Information | |||

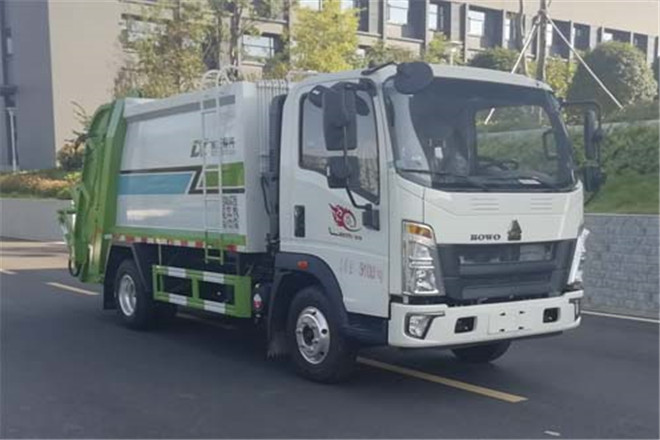

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2018 national Ⅵ emission standards | ||
| Length | 6420,6620,6720mm | ||
| Width | 2050mm | ||
| Height | 2600mm | ||
| Curb Weight | 5900kg | ||
| Gross Weight | 9100kg | ||
| Seats | 2,3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | ZZ1097H3815F191Z | ||
| Front/Rear Overhang | 1160/1980,1180/1960mm | ||
| Number of Leaf Springs | 3/3+2,2/2+1,2/2+2,3/4+3,2/3+2,1/1+1,11/9+7,11/11+7,3/5+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3280,3360,3800mm | ||
| Axle Load | 3300/5800kg | ||
| Front Wheel Track | 1610,1776,1796,1815mm | ||
| Rear Wheel Track | 1555,1595,1695,1795mm | ||
| Approaching/Departuring Angle | 18/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50R16LT,8.25R16LT,215/75R17.5,205/75R17.5,235/75R17.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D25TCIF1 | Kunming Yunnei Power Co. Ltd. | 110kW | 2499ml |
| WP2.3NQ130E61 | Weichai Power Co., Ltd. | 96kW | 2289ml |
| D30TCIF1 | Kunming Yunnei Power Co. Ltd. | 125kW | 2977ml |
| NV30-C6B | Dongfeng Chaoyang Diesel Co., Ltd. | 120kW | 3093ml |
| WP3NQ160E61 | Weichai Power Co., Ltd. | 118kW | 2970ml |
| F2.8NS6B156 | Beijing Foton Cummins Engine Co., Ltd. | 115kW | 2780ml |
| D40TCIF1 | Kunming Yunnei Power Co. Ltd. | 135kW | 4052ml |
| CY4SK661 | Dongfeng Chaoyang Diesel Co., Ltd. | 135kW | 4087ml |
| WP4.1NQ190E61 | Weichai Power Co., Ltd. | 140kW | 4088ml |
| F3.8NS6B190 | Beijing Foton Cummins Engine Co., Ltd. | 140kW | 3800ml |
