| Basic Information | |||

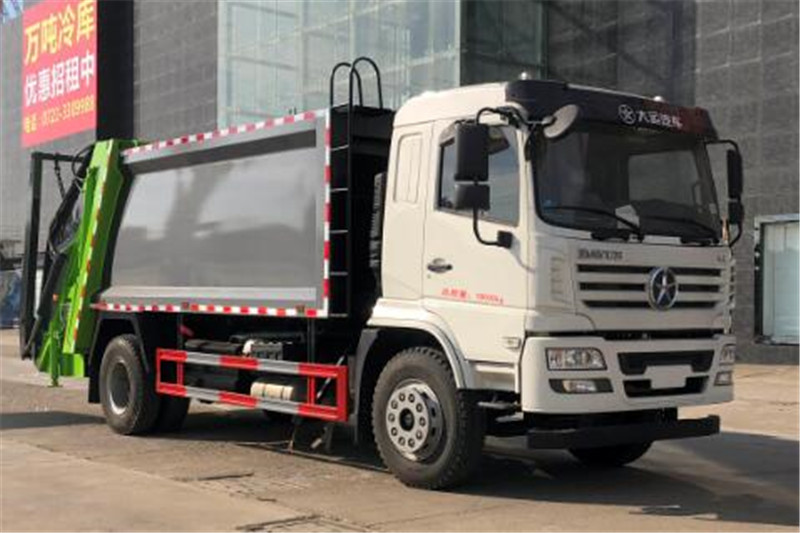

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 9000,8770mm | ||
| Width | 2500mm | ||
| Height | 3300mm | ||
| Curb Weight | 10005kg | ||
| Gross Weight | 18000kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | DYQ5183XXYD5AA | ||
| Front/Rear Overhang | 1450/2530mm | ||
| Number of Leaf Springs | 9/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4700,5000,5300,5600,4500mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1914,1997mm | ||
| Rear Wheel Track | 1750,1864,1800mm | ||
| Approaching/Departuring Angle | 20/10° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00-20 18PR,10.00R20 18PR,11.00-20 18PR,11.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC4EG160-50 | Guangxi Yuchai Machinery Co., Ltd. | 118kW | 4730ml |
| YC6JA180-50 | Guangxi Yuchai Machinery Co., Ltd. | 132kW | 6870ml |
| YNF40E1 | Kunming Yunnei Power Co., Ltd. | 125kW | 3920ml |
| YC4E160-56 | Guangxi Yuchai Machinery Co., Ltd. | 118kW | 4260ml |
| YC6JA220-50 | Guangxi Yuchai Machinery Co., Ltd. | 162kW | 6870ml |
