| Basic Information | |||

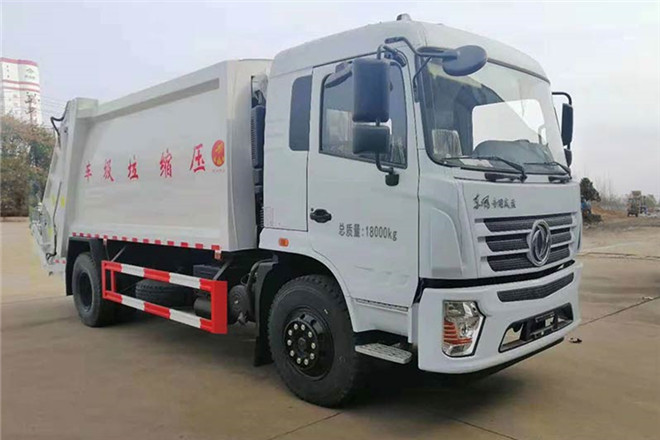

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2018 national Ⅵ emission standards | ||
| Length | 8600,7800mm | ||
| Width | 2500,2550mm | ||
| Height | 3300mm | ||
| Curb Weight | 9805kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | DFV1183GP6DJ | ||
| Front/Rear Overhang | 1440/2660,1440/2410mm | ||
| Number of Leaf Springs | 8/10+8,9/12+10,3/4+3,3/10+8,8/10+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3950,4200,4500,4700,5100mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1880,1940,1965,1910,1810mm | ||
| Rear Wheel Track | 1820,1860,1800mm | ||
| Approaching/Departuring Angle | 21/11,21/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20 18PR,275/80R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 154kW | 6200ml |
| YCS04200-68 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 4156ml |
| D4.0NS6B195 | Dongfeng Cummins Engine Co., Ltd. | 143kW | 4000ml |
| B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6200ml |
| YCS06200-60 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 6234ml |
| YCS06220-60 | Guangxi Yuchai Machinery Co., Ltd. | 162kW | 6234ml |
