| Basic Information | |||

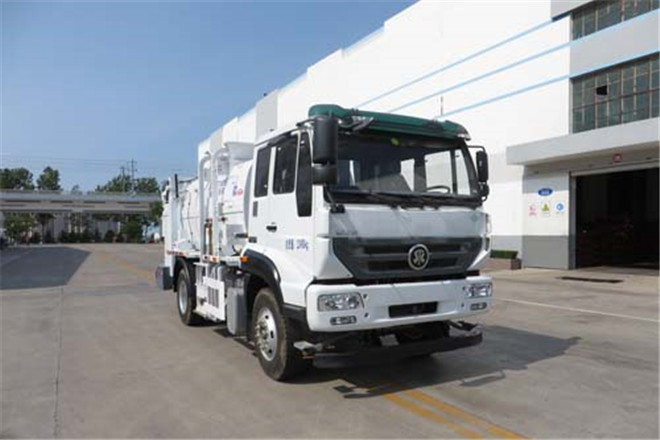

| Usage | Refuse Collector | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB18285-2005, GB11340-2005 | ||
| Length | 7365mm | ||
| Width | 2490mm | ||
| Height | 2955mm | ||
| Curb Weight | 8720kg | ||
| Gross Weight | 12490kg | ||
| Seats | 2,3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | ZZ1121G501GE1L | ||
| Front/Rear Overhang | 1250/2315mm | ||
| Number of Leaf Springs | 3/4,3/5,3/9+8,11/9+8,9/12+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800,4200,4500,4700,5000mm | ||
| Axle Load | 4200/8290kg | ||
| Front Wheel Track | 1960,2045mm | ||
| Rear Wheel Track | 1800,1860mm | ||
| Approaching/Departuring Angle | 13/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20,10.00R20 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| MT05.18-50 | China National Heavy Duty Truck Group Co., Ltd. | 132kW | 4580ml |
