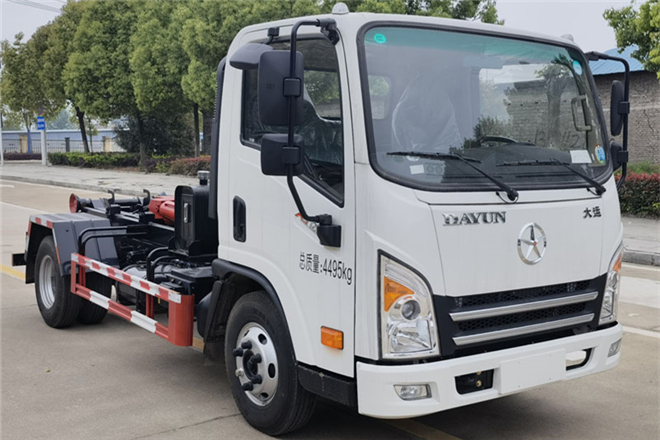

Suizhou Dongzheng SZD5041ZXXCG6 Detachable Container Garbage Collector

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2018 national Ⅵ emission standards
Length	5000,5350,5470,5530,5650mm
Width	1950,2050,2250mm
Height	2180,2220,2280mm
Curb Weight	3460kg
Gross Weight	4495kg
Seats	3,2
Max Speed	90km/h
Chassis
Chassis Model	CGC1041HDD33F
Front/Rear Overhang	1130/1050,1155/1045,1155/1165,1180/1050,1180/1170mm
Number of Leaf Springs	3/3+3,4/3+3,4/6+4,9/9+6,1/1+1,3/5+3,5/6+5,4/5+3,1/1,4/9+6,4/11+8,8/9+4,9/11+8,6/5+3,6/9+6,2/3+2
Number of Axles	2
Wheelbase	2800,2820,3100,3300,2600,3150,3200,3000mm
Axle Load	1800/2695,1700/2795,1650/2845kg
Front Wheel Track	1460,1487,1540,1590,1665,1515,1630,1644,1804mm
Rear Wheel Track	1370,1430,1480,1500,1540,1615,1650,1510,1800,1525mm
Approaching/Departuring Angle	20/19,20/18°
Tire
Number of Tires	6
Tire	195/70R15LT,6.50R16LT,7.00R16LT 8PR,185R14LT,6.00R15,7.50R16 6PR,6.00-15,6.00R15LT,7.50R16LT 6PR,6.00-15LT
Engine
Model	Brand	Power	Displacement
D20TCIF1	Kunming Yunnei Power Co., Ltd.	93kW	1999ml
Q23-115E60	Anhui Quanchai Power Co., Ltd.	85kW	2300ml
D20TCIF3	Kunming Yunnei Power Co., Ltd.	85kW	1999ml
D20TCIF11	Kunming Yunnei Power Co., Ltd.	93kW	1989ml
D20TCIF14	Kunming Yunnei Power Co., Ltd.	75kW	8624ml
