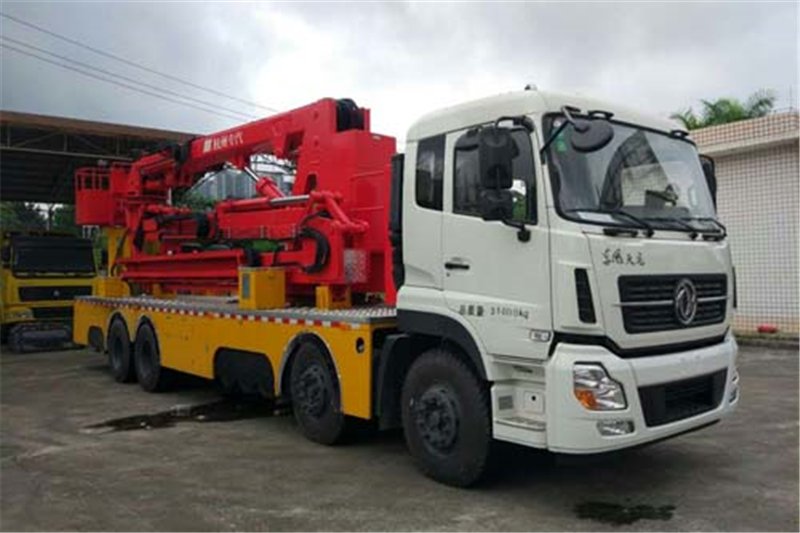

Hongyu HZZ5311JQJDF Bridge Detection Vehicle

Hongyu HZZ5311JQJDF Bridge Detection Vehicle
Hongyu HZZ5311JQJDF Bridge Detection Vehicle
Views:0
Basic Information
Usage Vehicle for Special Work
Fuel Type Diesel
Emission Standard GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length 12150mm
Width 2500mm
Height 3990mm
Curb Weight 30805kg
Gross Weight 31000kg
Seats 3,2
Max Speed 90km/h
Chassis
Chassis Model DFH1310A1
Front/Rear Overhang 1500/2720mm
Number of Leaf Springs 9/9/10,8/8/10,3/3/4,9/9/-,3/3/-,3/3/10,2/2/10,2/2/4,2/2/3,10/10/13,3/3/3
Number of Axles 4
Wheelbase 1850+4600+1350,1850+4600+1400,2050+4400+1350,2050+4400+1400,1850+4100+1350,1995+4600+1350mm
Axle Load 6500/6500/18000(two axles)kg
Front Wheel Track 2040/2040,2010/2010mm
Rear Wheel Track 1860/1860,1880/1880mm
Approaching/Departuring Angle 22/9.5°
Tire
Number of Tires 12
Tire 11.00-20 16PR,11.00-20 18PR,11.00R20 16PR,11.00R20 18PR,295/80R22.5 16PR,295/80R22.5 18PR,12R22.5 16PR,12R22.5 18PR
Engine
Model Brand Power Displacement
ISL9.5-315E51A Dongfeng Cummins Engine Co., Ltd. 232kW 9460ml
ISL9.5-340E51A Dongfeng Cummins Engine Co., Ltd. 251kW 9460ml
ISL9.5-360E51A Dongfeng Cummins Engine Co., Ltd. 268kW 9460ml
dCi350-51 Dongfeng Commercial Vehicle Co., Ltd. 257kW 11120ml
dCi385-51 Dongfeng Commercial Vehicle Co., Ltd. 283kW 11120ml
dCi420-51 Dongfeng Commercial Vehicle Co., Ltd. 309kW 11120ml
DDi75S315-50 Dongfeng Commercial Vehicle Co., Ltd. 232kW 7530ml
DDi75S350-50 Dongfeng Commercial Vehicle Co., Ltd. 257kW 7530ml
ISL9.5-400E51A Dongfeng Cummins Engine Co., Ltd. 295kW 9460ml
dCi450-51 Dongfeng Commercial Vehicle Co., Ltd. 323kW 11120ml
dCi465-51 Dongfeng Commercial Vehicle Co., Ltd. 343kW 11120ml
