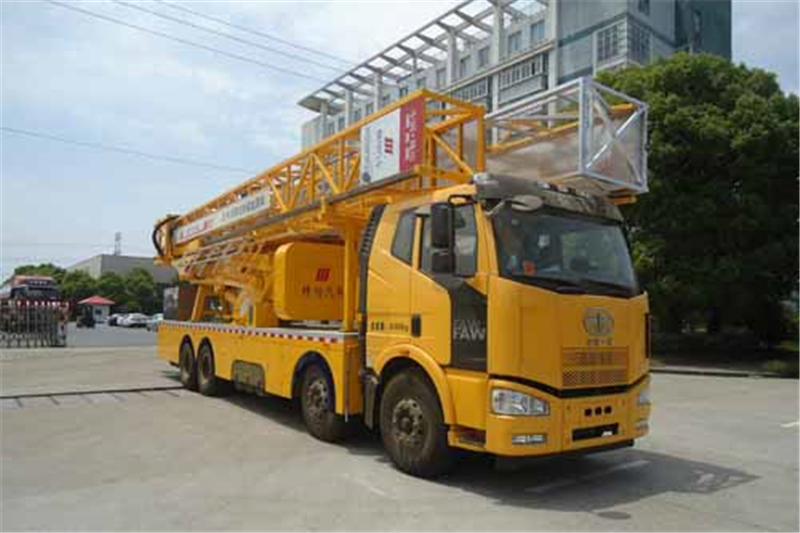

Hongyu HZZ5318JQJ Bridge Detection Vehicle

Hongyu HZZ5318JQJ Bridge Detection Vehicle
Hongyu HZZ5318JQJ Bridge Detection Vehicle
Views:0
Basic Information
Usage Vehicle for Special Work
Fuel Type Diesel
Emission Standard GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length 12560mm
Width 2500mm
Height 4000mm
Curb Weight 30805kg
Gross Weight 31000kg
Seats 3,2
Max Speed 102km/h
Chassis
Chassis Model CA1310P63K1L6T4E5
Front/Rear Overhang 1400/2700mm
Number of Leaf Springs 10/10/11,3/3/11,3/3/4,9/9/10,3/3/10
Number of Axles 4
Wheelbase 1950+4550+1350,1950+3550+1350mm
Axle Load 6550/6450/18000(two axles)kg
Front Wheel Track 1950/1950mm
Rear Wheel Track 1847/1847,1878/1878,1988/1988mm
Approaching/Departuring Angle 21/11°
Tire
Number of Tires 12
Tire 11.00R20 ,10.00R20 ,11R22.5 ,295/80R22.5,12R22.5
Engine
Model Brand Power Displacement
CA6DK1-32E5 China FAW Group Co., Ltd. 239kW 7146ml
CA6DL1-28E5 China FAW Group Co., Ltd. 209kW 7700ml
CA6DK1-32E51 China FAW Group Co., Ltd. 239kW 7146ml
CA6DL1-32E5 China FAW Group Co., Ltd. 238kW 7700ml
CA6DL2-35E5 China FAW Group Co., Ltd. 261kW 8600ml
