| Basic Information |
| Usage |

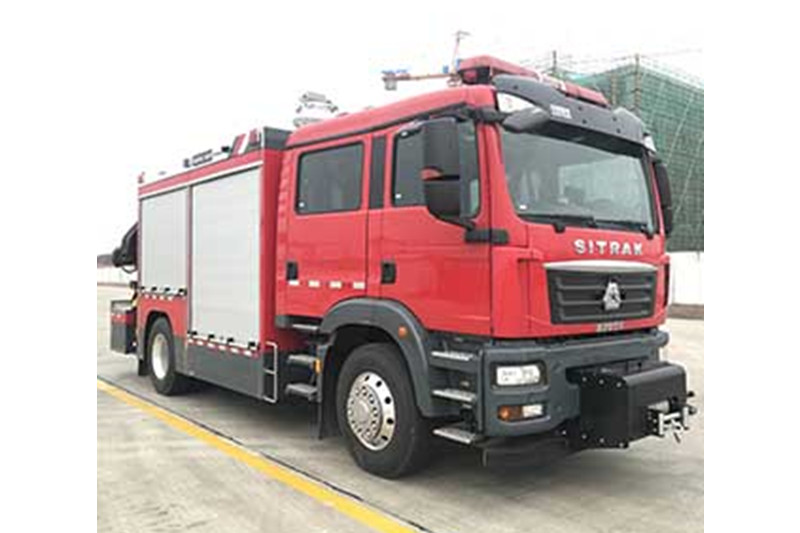

Fire Extinguishing Truck |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 national Ⅵ emission standards |
| Length |
8770mm |
| Width |
2530mm |
| Height |
3590mm |
| Curb Weight |
13750kg |
| Gross Weight |
14200kg |
| Seats |
2+4 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
ZZ5206N471GF5 |
| Front/Rear Overhang |
1450/2350mm |
| Number of Leaf Springs |
2/3+2,3/3+2,3/9+8,11/9+8 |
| Number of Axles |
2 |
| Wheelbase |
4500,4700,4200,5000,5200,5600,5800,3900,6000mm |
| Axle Load |
4800/9400kg |
| Front Wheel Track |
1998,2035mm |
| Rear Wheel Track |
1850mm |
| Approaching/Departuring Angle |
16/10° |
| Tire |
| Number of Tires |
6 |
| Tire |
315/80R22.5,295/80R22.5,12R22.5,12.00R20,11.00R20 |
| Engine |
| Model |
MC07.27-60,MC07.31-60,MC07.33-60,MC07.34-60,MC11.40-60,WP8.350E61,MC07H.29-60,MC07H.33-60,MC07H.35-60,WP7.270E61,WP7.300E61 |
| Power |
202,228,240,251,297,257,213,240,257,199,220kW |
| Brand |
China National Heavy Duty Truck Group Co., Ltd.; China National Heavy Duty Truck Group Co., Ltd.; China National Heavy Duty Truck Group Co., Ltd.; China National Heavy Duty Truck Group Co., Ltd.; China National Heavy Duty Truck Group Co., Ltd.; Weichai Power Co., Ltd.; China National Heavy Duty Truck Group Co., Ltd.; China National Heavy Duty Truck Group Co., Ltd.; China National Heavy Duty Truck Group Co., Ltd.; Weichai Power Co., Ltd.; Weichai Power Co., Ltd. |
| Displacement |
6870,6870,6870,6870,10518,7800,7360,7360,7360,7470,7470ml |
