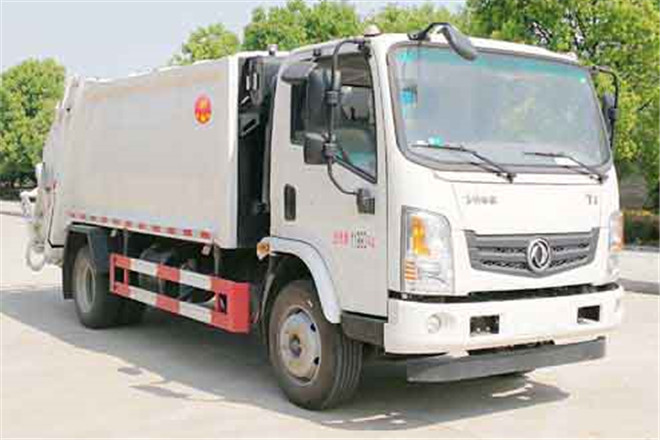

Suizhou Dongzheng SZD5120ZYSEL6 Compression Refuse Collector

Suizhou Dongzheng SZD5120ZYSEL6 Compression Refuse Collector
Suizhou Dongzheng SZD5120ZYSEL6 Compression Refuse Collector
Views:0
Basic Information
Usage Refuse Collector
Fuel Type Diesel
Emission Standard GB3847-2005, GB17691-2018 national Ⅵ emission standards
Length 7150,7380,7230mm
Width 2260,2360mm
Height 2800mm
Curb Weight 7200kg
Gross Weight 11990kg
Seats 2,3
Max Speed 88km/h
Chassis
Chassis Model EQ1120GL6DJ
Front/Rear Overhang 1220/2130,1220/2360,1220/2210,1250/2100,1250/2330,1250/2180mm
Number of Leaf Springs 8/10+7,9/11+8
Number of Axles 2
Wheelbase 3800,3950,4500mm
Axle Load 4300/7690kg
Front Wheel Track 1750,1820mm
Rear Wheel Track 1660,1800,1700mm
Approaching/Departuring Angle 17/13°
Tire
Number of Tires 6
Tire 8.25R20 14PR,8.25R20 16PR,245/70R19.5 16PR
Engine
Model Brand Power Displacement
YCY30165-60 Guangxi Yuchai Machinery Co., Ltd. 121kW 2970ml
D25TCIF1 Kunming Yunnei Power Co., Ltd. 110kW 2499ml
