| Basic Information | |||

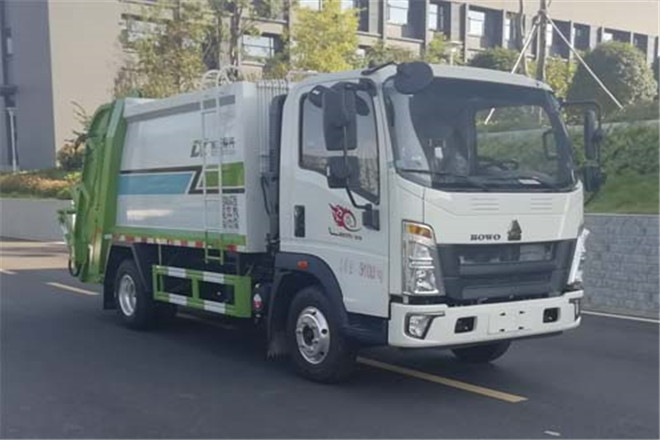

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005, GB17691-2018 national Ⅵ emission standards | ||
| Length | 6500,6700,6800mm | ||
| Width | 2050mm | ||
| Height | 2650mm | ||
| Curb Weight | 5500kg | ||
| Gross Weight | 7360kg | ||
| Seats | 2 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | HFC1071P33K1C7ZS | ||
| Front/Rear Overhang | 1075/2060,1100/2035mm | ||
| Number of Leaf Springs | 5/5+6,11/9+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3365,2850mm | ||
| Axle Load | 2640/4720kg | ||
| Front Wheel Track | 1440mm | ||
| Rear Wheel Track | 1425mm | ||
| Approaching/Departuring Angle | 24/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16LT 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D25TCIF1 | Kunming Yunnei Power Co., Ltd. | 110kW | 2499ml |
| Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 85kW | 2300ml |
