| Basic Information |
| Usage |

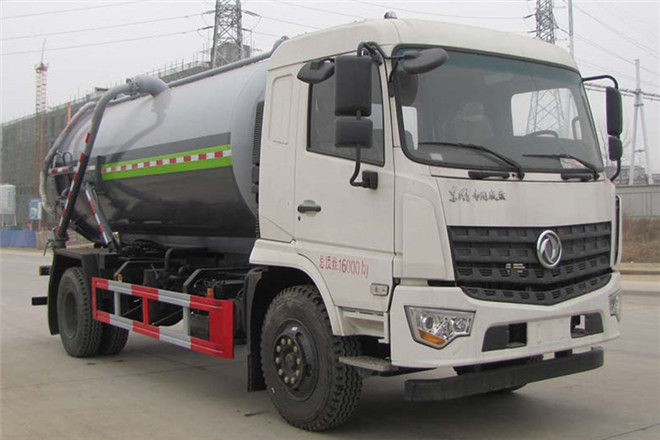

Suction-type Sewer Scavenger |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 national Ⅵ emission standards |
| Length |
8150mm |
| Width |
2500mm |
| Height |
3450mm |
| Curb Weight |
8805kg |
| Gross Weight |
18000kg |
| Seats |
2,3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
DFV1183GDP6DJ1 |
| Front/Rear Overhang |
1440/2210mm |
| Number of Leaf Springs |
8/10+7,8/10+8,11/11+10,3/4+3 |
| Number of Axles |
2 |
| Wheelbase |
3800,3950,4200,4500,4700,5100,5600,6000mm |
| Axle Load |
6500/11500kg |
| Front Wheel Track |
1810,1880,1940,1965,1910mm |
| Rear Wheel Track |
1800,1820,1860mm |
| Approaching/Departuring Angle |
21/12° |
| Tire |
| Number of Tires |
6 |
| Tire |
10.00R20 18PR,275/80R22.5 18PR,10.00R20 16PR,11.00R20 16PR,11.00R20 18PR,295/80R22.5 |
| Engine |
| Model |
B6.2NS6B230,D4.0NS6B170,D4.5NS6B220,B6.2NS6B210,D6.7NS6B230,D4.0NS6B195,D4.5NS6B190,YCS04200-68,YCS06245-60A,YCS06245-60,D30TCIF1,YCS06220-60,D45TCIF1,YCK05240-60,YCK05230-60 |
| Power |
169,125,162,154,169,143,140,147,180,180,125,162,162,176,169kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Kunming Yunnei Power Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Kunming Yunnei Power Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd. |
| Displacement |
6200,4000,4500,6200,6700,4000,4500,4156,6234,6234,2977,6234,4461,5132,5132ml |
