| Basic Information |
| Usage |

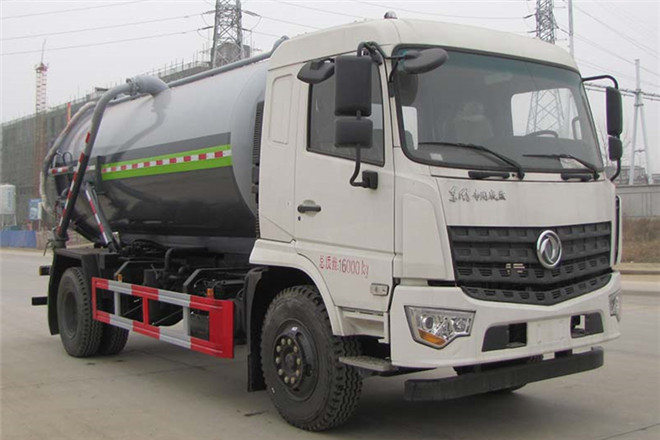

Suction-type Sewer Scavenger |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 national Ⅵ emission standards |
| Length |
7600mm |
| Width |
2500,2550mm |
| Height |
3400mm |
| Curb Weight |
7800kg |
| Gross Weight |
16000kg |
| Seats |
2,3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
DFV1163GDP6DJ1 |
| Front/Rear Overhang |
1440/2210mm |
| Number of Leaf Springs |
8/10+7,8/10+8,3/4+3,3/10+8 |
| Number of Axles |
2 |
| Wheelbase |
3800,3950,4200,4500,4700,5100,5300,5600mm |
| Axle Load |
5600/10400kg |
| Front Wheel Track |
1810,1880,1940,1965,1910mm |
| Rear Wheel Track |
1800,1820,1860mm |
| Approaching/Departuring Angle |
21/12° |
| Tire |
| Number of Tires |
6 |
| Tire |
10.00R20 18PR,275/80R22.5 18PR,9.00R20 16PR,10.00R20 16PR |
| Engine |
| Model |
D4.5NS6B190,D4.0NS6B160,D4.0NS6B195,B6.2NS6B210,D4.0NS6B170,B6.2NS6B230,YCS04200-68,YCS04160-68,YCY30165-60,YCS04180-68,D6.7NS6B230,D4.5NS6B220,D30TCIF1 |
| Power |
140,118,143,154,125,169,147,118,121,132,169,162,125kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Kunming Yunnei Power Co., Ltd. |
| Displacement |
4500,4000,4000,6200,4000,6200,4156,4156,2970,4156,6700,4500,2977ml |
