| Basic Information | |||

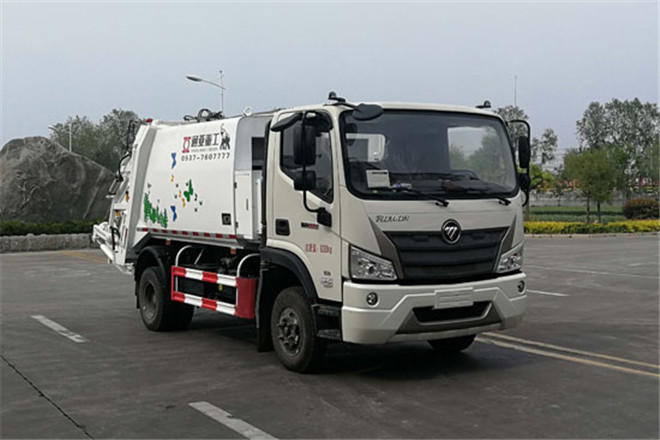

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005, GB17691-2018 national Ⅵ emission standards | ||
| Length | 6890,7190mm | ||
| Width | 2170,2100mm | ||
| Height | 2620mm | ||
| Curb Weight | 6060kg | ||
| Gross Weight | 8280kg | ||
| Seats | 3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | BJ1084VGJEK-01 | ||
| Front/Rear Overhang | 1180/2050,1180/1950mm | ||
| Number of Leaf Springs | 10/12+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 3000/5280kg | ||
| Front Wheel Track | 1785mm | ||
| Rear Wheel Track | 1630mm | ||
| Approaching/Departuring Angle | 20/18,20/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50R16 14PR,8.25R16 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP3NQ160E61 | Weichai Power Co., Ltd. | 118kW | 2970ml |
