| Basic Information | |||

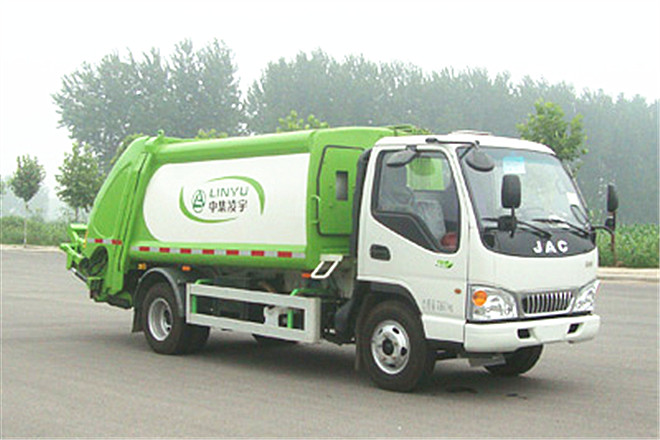

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6760,6320,6590mm | ||
| Width | 1960mm | ||
| Height | 2420,2700mm | ||
| Curb Weight | 4910kg | ||
| Gross Weight | 7360kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | HFC1070P93K1C3ZV | ||
| Front/Rear Overhang | 1085/1875,1085/1927mm | ||
| Number of Leaf Springs | 8/4+6,11/9+7,7/4+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360,3308,2800mm | ||
| Axle Load | 2640/4720kg | ||
| Front Wheel Track | 1440mm | ||
| Rear Wheel Track | 1425,1395mm | ||
| Approaching/Departuring Angle | 27/11° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16LT 14PR,7.00-16LT 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP3Q130E50 | Weichai Power Yangzhou Diesel Co., Ltd. | 96kW | 2970ml |
| HFC4DF1-2D2 | Hefei Jianghuai Chaoyang Diesel Co., Ltd. | 86kW | 2544ml |
| D25TCIE1 | Kunming Yunnei Power Co., Ltd. | 105kW | 2499ml |
| HFC4DA1-2D | Anhui Jianghuai Automobile Co., Ltd. | 88kW | 2771ml |
