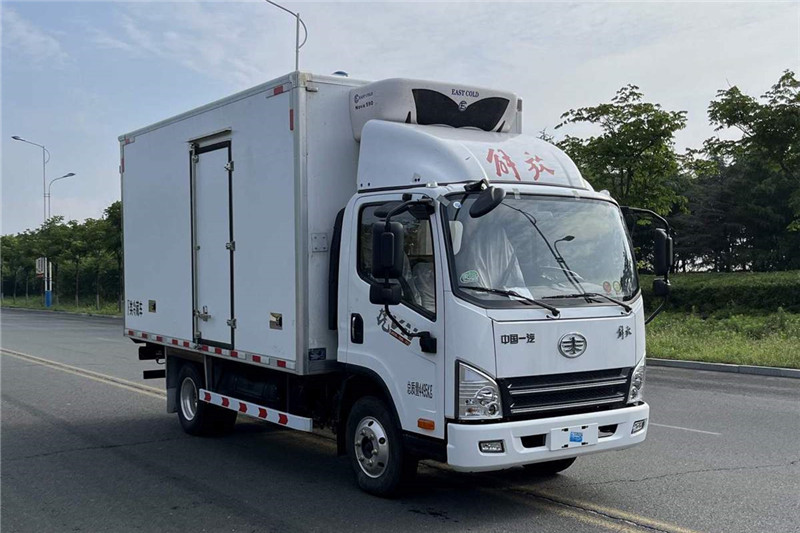

Tongmai LTM5041XLCJFA2 Refrigerated Van

Tongmai LTM5041XLCJFA2 Refrigerated Van
Tongmai LTM5041XLCJFA2 Refrigerated Van
Views:0
Basic Information
Usage Refrigerated Van
Fuel Type Diesel
Emission Standard GB17691-2018 national Ⅵ emission standards
Length 5995mm
Width 2060,2160,2260mm
Height 2950,3080,3180,3280mm
Curb Weight 1100kg
Gross Weight 4495kg
Seats 3
Max Speed 110km/h
Chassis
Chassis Model CA1040P40K59L2BE6A84
Front/Rear Overhang 1115/1580,1155/1540mm
Number of Leaf Springs 3/3+3,3/4+3,3/7+3,3/7+9
Number of Axles 2
Wheelbase 3300mm
Front Wheel Track 1600,1649,1654,1662,1700,1714,1726,1738,1751,1761,1771mm
Rear Wheel Track 1525,1539,1565,1579,1590,1604,1640,1662,1674,1678,1740,1800mm
Approaching/Departuring Angle 20/15°
Tire
Number of Tires 6
Tire 7.00R16 8PR,7.00R16LT 8PR,6.50R16LT 12PR
Engine
Model Brand Power Displacement
WP3NQ140E61 Weichai Power Co., Ltd. 103kW 2970ml
D30TCIF1 Kunming Yunnei Power Co., Ltd. 125kW 2977ml
WP3NQ160E61 Weichai Power Co., Ltd. 118kW 2970ml
CA4DB1A13E6 China FAW Group Co., Ltd. 95.2kW 2207ml
F2.5NS6B150 Beijing Foton Cummins Engine Co., Ltd. 110kW 2498ml
F2.5NS6B160 Beijing Foton Cummins Engine Co., Ltd. 115kW 2498ml
CA4DD1-16E6 China FAW Group Co., Ltd. 121kW 3000ml
CA4DD1-15E6 China FAW Group Co., Ltd. 113 kW 3000 ml
