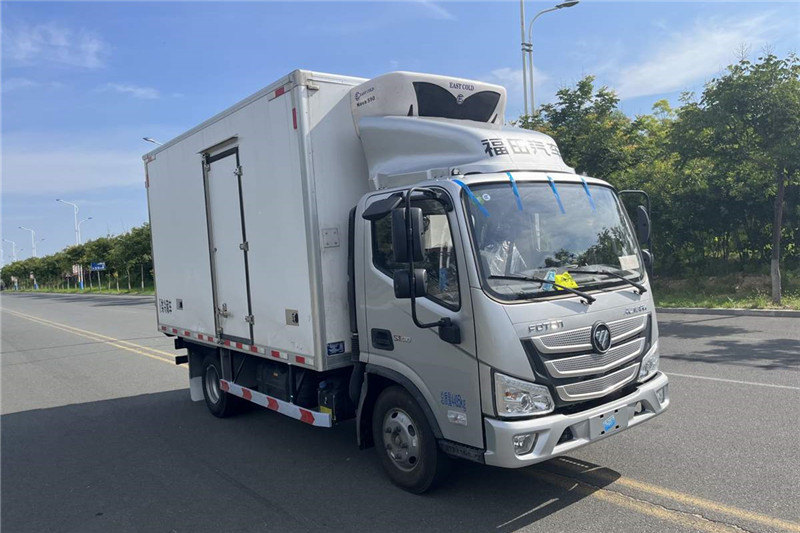

Tongmai LTM5043XLCBJA3 Refrigerated Van

Tongmai LTM5043XLCBJA3 Refrigerated Van
Tongmai LTM5043XLCBJA3 Refrigerated Van
Views:0
Basic Information
Usage Refrigerated Van
Fuel Type Diesel
Emission Standard GB17691-2018 naitonal Ⅵ emission standards
Length 5995mm
Width 2060,2160,2260mm
Height 2950,3080,3180,3280mm
Curb Weight 3200kg
Gross Weight 4495kg
Seats 3
Max Speed 105km/h
Chassis
Chassis Model BJ1048V9JD6-F3
Front/Rear Overhang 1110/1525,1120/1515mm
Number of Leaf Springs 3/5+2,3/3+2,2/2+1,3/4+2,3/7+6,3/8+6,1/1+1,9/8+6,2/2+2
Number of Axles 2
Wheelbase 3360mm
Front Wheel Track 1590,1730,1600,1740mm
Rear Wheel Track 1590,1615,1800,1715mm
Approaching/Departuring Angle 20/15°
Tire
Number of Tires 6
Tire 7.00R16LT 8PR,6.50R16LT 12PR
Engine
Model Brand Power Displacement
4J28TC6 Beiqi Foton Cummins Engine Co., Ltd. 88kW 2771ml
Q28-130E60 Anhui Quanchai Power Co., Ltd. 96kW 2800ml
F2.8NS6B131 Beijing Foton Cummins Engine Co., Ltd. 96kW 2780ml
F2.8NS6B150 Beijing Foton Cummins Engine Co., Ltd. 110kW 2780ml
F2.8NS6B156 Beijing Foton Cummins Engine Co., Ltd. 115kW 2780ml
D30TCIF1 Kunming Yunnei Power Co., Ltd. 125kW 2977ml
Q23-115E60 Anhui Quanchai Power Co., Ltd. 85kW 2300ml
D25TCIF1 Kunming Yunnei Power Co., Ltd. 110kW 2499ml
4F25TC Beiqi Foton Cummins Engine Co., Ltd. 116kW 2499ml
4F25TC3 Beiqi Foton Cummins Engine Co., Ltd. 96kW 2499ml
4F25TC4 Beiqi Foton Cummins Engine Co., Ltd. 116 kW 2499 ml
