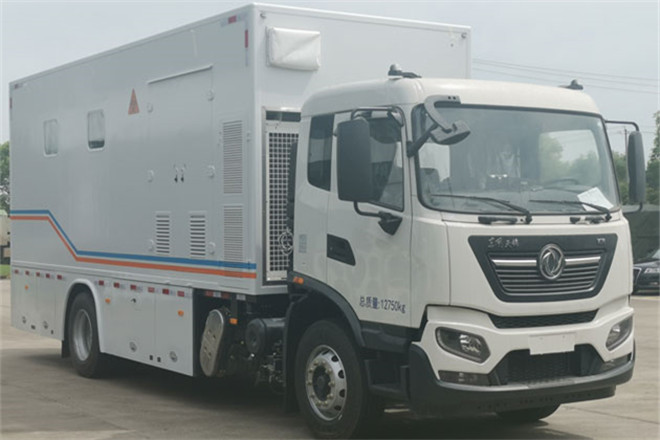

Jiangnan Spaceflight SJH5131XJC Inspection Van

Basic Information
Usage	Vehicle for Special Work
Fuel Type	Diesel
Emission Standard	GB3847-2005, GB17691-2018 national Ⅵ emission standards
Length	9205mm
Width	2525mm
Height	3750mm
Curb Weight	12555kg
Gross Weight	12750kg
Seats	3
Max Speed	89km/h
Chassis
Chassis Model	DFH1180EX8
Front/Rear Overhang	1400/2805mm
Number of Leaf Springs	7/9+6,8/10+8,8/9+6,11/10+8
Number of Axles	2
Wheelbase	3800,3950,4200,4500,4700,5000,5300,5800,5600mm
Axle Load	4600/8150kg
Front Wheel Track	1876,1896,1920,1950,1914,1934,1980,2000,1815,1860mm
Rear Wheel Track	1820,1860,1800mm
Approaching/Departuring Angle	17/13°
Tire
Number of Tires	6
Tire	10.00R20 18PR,275/80R22.5 18PR
Engine
Model	Brand	Power	Displacement
DDi50E190-60	Dongfeng Commercial Vehicle Co., Ltd.	147kW	5000ml
D4.5NS6B190	Dongfeng Cummins Engine Co., Ltd.	140kW	4500ml
D6.7NS6B230	Dongfeng Cummins Engine Co., Ltd.	169kW	6700ml
B6.2NS6B210	Dongfeng Cummins Engine Co., Ltd.	154kW	6200ml
B6.2NS6B230	Dongfeng Cummins Engine Co., Ltd.	169kW	6200ml
DDi50E220-60	Dongfeng Commercial Vehicle Co., Ltd.	162kW	5000ml
D4.0NS6B185	Dongfeng Cummins Engine Co., Ltd.	136kW	4000ml
