| Basic Information | |||

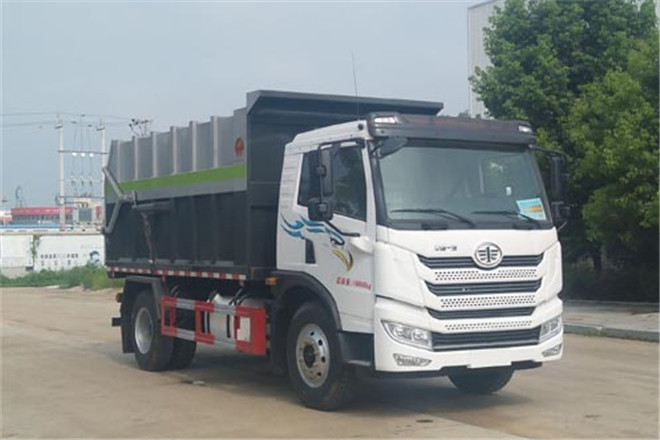

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005, GB17691-2018 national Ⅵ emission standards | ||
| Length | 6800,7800mm | ||
| Width | 2500,2550mm | ||
| Height | 3100,3300mm | ||
| Curb Weight | 6500kg | ||
| Gross Weight | 16000kg | ||
| Seats | 2,3 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | CA1160PK15L1BE6A81 | ||
| Front/Rear Overhang | 1332/1468,1332/1968mm | ||
| Number of Leaf Springs | 10/10+9,7/10+3,7/7+3,3/4+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4000,4500,5250mm | ||
| Axle Load | 5600/10400kg | ||
| Front Wheel Track | 1916mm | ||
| Rear Wheel Track | 1860mm | ||
| Approaching/Departuring Angle | 21/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,275/80R22.5 16PR,275/80R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP4.6NQ220E61 | Weichai Power Co., Ltd. | 162kW | 4580ml |
| CA4DH1-18E6 | China FAW Group Co., Ltd. | 132kW | 3800ml |
