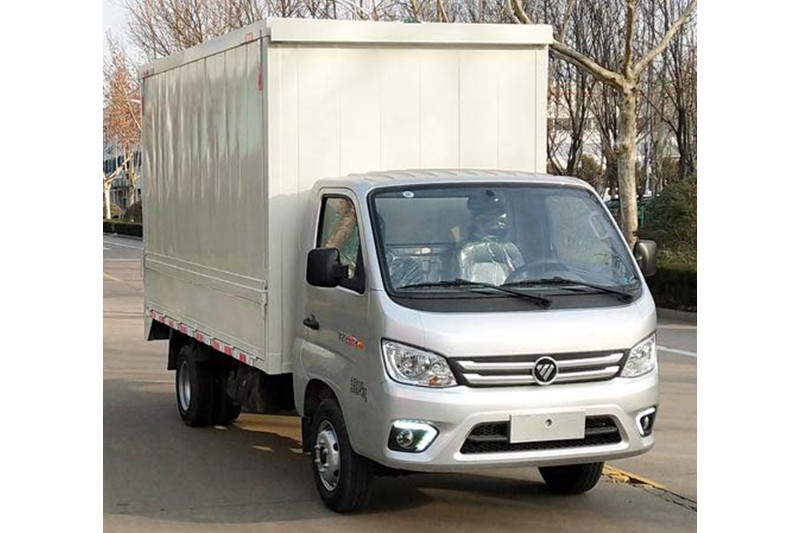

Foton Xiangling BJ5032XWT5JV5-01 Mobile Stage
| Basic Information |
| Usage |
Vehicle for Special Work |
| Fuel Type |
Gasoline |
| Emission Standard |
GB18352.6-2016 national Ⅵ emission standards |
| Length |
5595mm |
| Width |
1800,1840mm |
| Height |
2700,2900mm |
| Curb Weight |
1990kg |
| Gross Weight |
2805kg |
| Seats |
2 |
| Max Speed |
100km/h |
| Chassis |
| Chassis Model |
BJ1032V5JV5-01 |
| Front/Rear Overhang |
1075/1320mm |
| Number of Leaf Springs |
3/5+2,2/3+2,3/3+2 |
| Number of Axles |
2 |
| Wheelbase |
2850,3200,3300mm |
| Axle Load |
1150/1655kg |
| Front Wheel Track |
1410mm |
| Rear Wheel Track |
1320mm |
| Approaching/Departuring Angle |
23/18° |
| Tire |
| Number of Tires |
6 |
| Tire |
185R14LT 6PR,175R14LT 8PR |
| Engine |
| Model |
DAM15KL,DAM16KL |
| Power |
85,90kW |
| Brand |
Harbin Dongan Automobile Power Co., Ltd.; Harbin Dongan Automobile Power Co., Ltd. |
| Displacement |
1498,1597ml |
