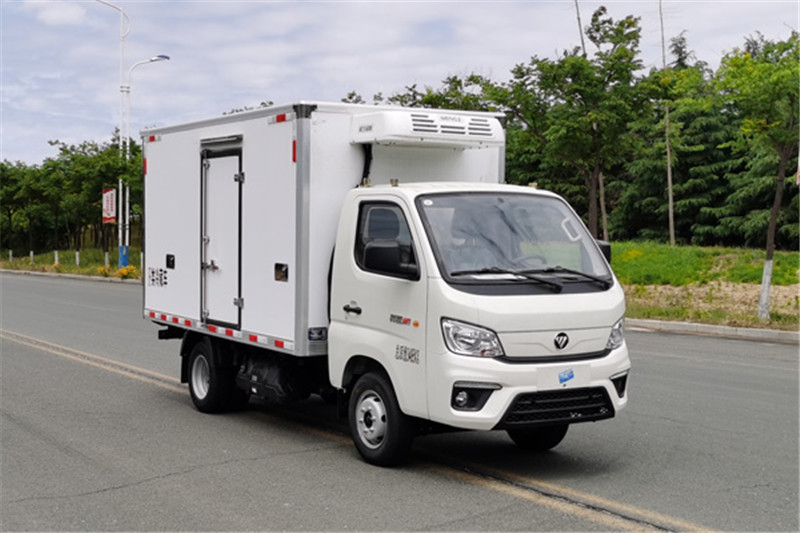

Tongmai LTM5034XLCBJA1 Refrigerated Van
| Basic Information |
| Usage |
Refrigerated Van |
| Fuel Type |
Gasoline |
| Emission Standard |
GB18352.6-2016 national Ⅵ emission standards |
| Length |
5070,4720mm |
| Width |
1820,1790,1750mm |
| Height |
2550,2510,2480mm |
| Curb Weight |
1525kg |
| Gross Weight |
3495kg |
| Seats |
2 |
| Max Speed |
110km/h |
| Chassis |
| Chassis Model |
BJ1031V5JV4-51 |
| Front/Rear Overhang |
1075/1245mm |
| Number of Leaf Springs |
3/5,2/3,3/3 |
| Number of Axles |
2 |
| Wheelbase |
2750,2400mm |
| Front Wheel Track |
1320mm |
| Rear Wheel Track |
1280mm |
| Approaching/Departuring Angle |
22/20° |
| Tire |
| Number of Tires |
6 |
| Tire |
175R14LT 8PR,175R14LT 6PR |
| Engine |
| Model |
DAM16KL;DAM15KL |
| Power |
90,85kW |
| Brand |
Harbin Dongan Automobile Power Co., Ltd.; Harbin Dongan Automobile Power Co., Ltd. |
| Displacement |
1597,1498ml |
