| Basic Information | |||

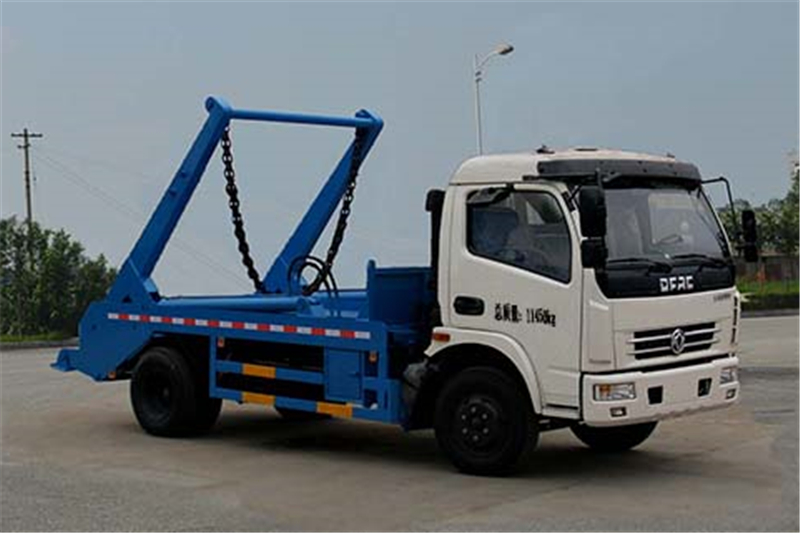

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6800mm | ||
| Width | 2200,2450mm | ||
| Height | 3000mm | ||
| Curb Weight | 4800kg | ||
| Gross Weight | 11450kg | ||
| Seats | 3 | ||
| Max Speed | 103km/h | ||
| Chassis | |||
| Chassis Model | EQ1110SJ8BDC | ||
| Front/Rear Overhang | 1130/1870,1150/1850mm | ||
| Number of Leaf Springs | 8/10+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800mm | ||
| Axle Load | 4360/7090kg | ||
| Front Wheel Track | 1745,1747,1823,1845mm | ||
| Rear Wheel Track | 1620,1806,1800,1715mm | ||
| Approaching/Departuring Angle | 21/10° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25R20 14PR,245/70R19.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| CY4SK251 | Dongfeng Chaoyang Diesel Co., Ltd. | 115kW | 3856ml |
| YC4S150-50 | Guangxi Yuchai Machinery Co. Ltd. | 110kW | 3767ml |
| ISF3.8s5154 | Beijing Foton Cummins Engine Co., Ltd. | 115kW | 3760ml |
| 4DX23-140E5 | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant Co., Ltd. | 105kW | 3857ml |
| YN38CRE1 | Kunming Yunnei Power Co., Ltd. | 95kW | 3760ml |
| YC4Y22-15050 | Guangxi Yuchai Machinery Co. Ltd. | 110kW | 2169ml |
| YNF40E1 | Kunming Yunnei Power Co., Ltd. | 125kW | 3920ml |
