| Basic Information |
| Usage |

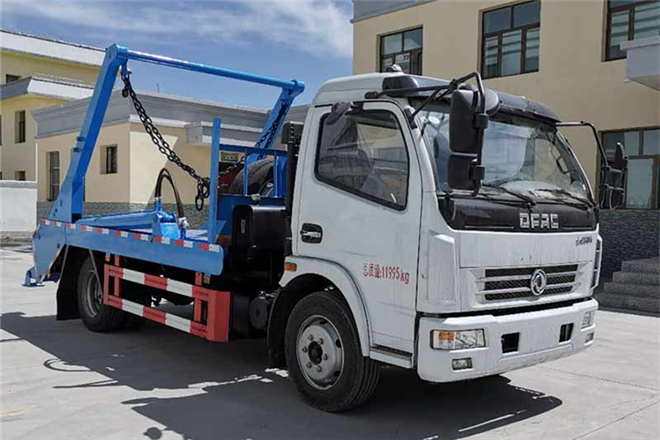

Refuse Collector |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005, GB17691-2018 national Ⅵ emission standards |
| Length |
6800mm |
| Width |
2220,2450mm |
| Height |
3000,3250mm |
| Curb Weight |
4900kg |
| Gross Weight |
11995kg |
| Seats |
3 |
| Max Speed |
103km/h |
| Chassis |
| Chassis Model |
EQ1125SJ8CDC |
| Front/Rear Overhang |
1130/1870,1180/1820mm |
| Number of Leaf Springs |
8/10+7,12/12+9 |
| Number of Axles |
2 |
| Wheelbase |
3800,3950,4050,4100,4400,3600mm |
| Axle Load |
4350/7645kg |
| Front Wheel Track |
1745,1802,1820,1842mm |
| Rear Wheel Track |
1630,1650,1800,1720mm |
| Approaching/Departuring Angle |
21/15° |
| Tire |
| Number of Tires |
6 |
| Tire |
245/70R19.5,8.25R20 |
| Engine |
| Model |
D4.0NS6B170,D4.0NS6B185,YCS04190-68,ZD30D16-6N,D25TCIF1,D30TCIF1,D40TCIF1,D45TCIF1,NV30-C6G,NV30-C6C,NV30-C6D,CY4SK161,CY4SK261,CY4SK361,YCY30165-60,D4.0NS6B160,CY4BK261,YCY24140-60,Q28-130E60,H30-165E60 |
| Power |
125,136,140,120,110,125,135,162,115,120,120,135,125,125,121,118,100,103,96,120kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Dongfeng Light Engine Co., Ltd.; Kunming Yunnei Power Co., Ltd.; Kunming Yunnei Power Co., Ltd.; Kunming Yunnei Power Co., Ltd.; Kunming Yunnei Power Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Anhui Quanchai Power Co., Ltd.; Anhui Quanchai Power Co., Ltd. |
| Displacement |
4000,4000,4156,2953,2499,2977,4052,4461,2968,3093,2968,3856,3856,3856,2970,4000,3707,2360,2800,3000ml |
