| Basic Information |
| Usage |

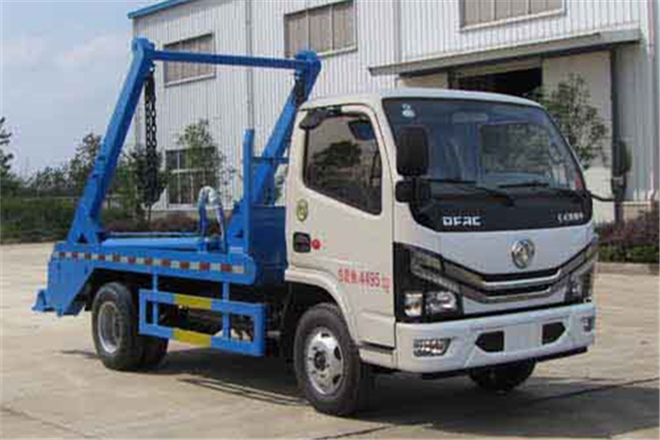

Refuse Collector |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 national Ⅵ emission standards |
| Length |
5995mm |
| Width |
2000mm |
| Height |
2850mm |
| Curb Weight |
3565kg |
| Gross Weight |
4495kg |
| Seats |
2 |
| Max Speed |
110km/h |
| Chassis |
| Chassis Model |
EQ1045SJ3CDF |
| Front/Rear Overhang |
1055/1632mm |
| Number of Leaf Springs |
6/6+5,3/3+3,2/3+2,5/7+3,5/4+3,6/4+3,6/5+2,6/3+3 |
| Number of Axles |
2 |
| Wheelbase |
2700,2950,3308mm |
| Axle Load |
1600/2895kg |
| Front Wheel Track |
1525,1519,1472mm |
| Rear Wheel Track |
1498,1516,1586,1458,1650mm |
| Approaching/Departuring Angle |
27.7/14° |
| Tire |
| Number of Tires |
6 |
| Tire |
6.50R16,7.00R16,7.50R16LT 8PR,6.00R15LT 10PR,6.50R16LT 10PR,7.00R16LT 8PR |
| Engine |
| Model |
D20TCIF1,Q23-115E60,Q28-130E60,CA4DB1-13E6,D20TCIF11,YCY24140-60,CA4DB1-11E6,CY4BK161,ZD30D16-6N,H20-120E60,CY4BK461,M9T-600 |
| Power |
93,85,96,95,93,103,81,105,120,90,95,105kW |
| Brand |
Kunming Yunnei Power Co., Ltd.; Anhui Quanchai Power Co., Ltd.; Anhui Quanchai Power Co., Ltd.; China FAW Group Co., Ltd.; Kunming Yunnei Power Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; China FAW Group Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Dongfeng Light Engine Co., Ltd.; Anhui Quanchai Power Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Dongfeng Light Engine Co., Ltd. |
| Displacement |
1999,2300,2800,2207,1999,2360,2207,3856,2953,2000,3707,2298ml |
