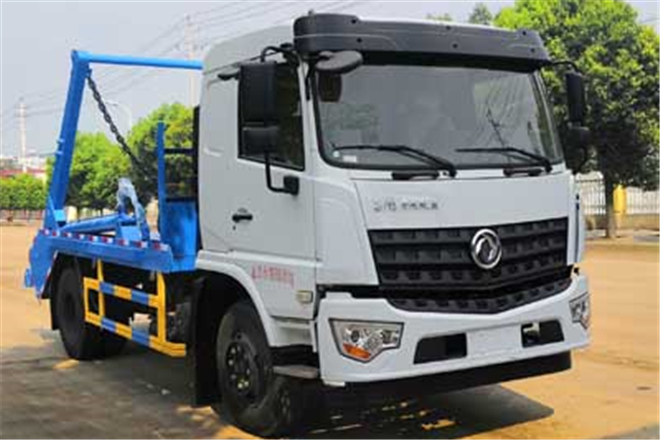

Suizhou Dongzheng SZD5163ZBSED6 Swept-body Refuse Collector

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2018 national Ⅵ emission standards
Length	7450mm
Width	2490mm
Height	3350mm
Curb Weight	6805kg
Gross Weight	16000kg
Seats	3,2
Max Speed	89km/h
Chassis
Chassis Model	DFV1163GDP6DJ1
Front/Rear Overhang	1440/2060mm
Number of Leaf Springs	8/10+7,8/10+8,3/4+3,3/10+8
Number of Axles	2
Wheelbase	3800,3950,4200,4500,4700,5100,5300,5600mm
Axle Load	5600/10400kg
Front Wheel Track	1810,1880,1940,1965,1910mm
Rear Wheel Track	1800,1820,1860mm
Approaching/Departuring Angle	21/14°
Tire
Number of Tires	6
Tire	10.00R20 18PR,275/80R22.5 18PR,9.00R20 16PR,10.00R20 16PR
Engine
Model	Brand	Power	Displacement
D4.5NS6B190	Dongfeng Cummins Engine Co., Ltd.	140kW	4500ml
D4.0NS6B160	Dongfeng Cummins Engine Co., Ltd.	118kW	4000ml
D4.0NS6B195	Dongfeng Cummins Engine Co., Ltd.	143kW	4000ml
B6.2NS6B210	Dongfeng Cummins Engine Co., Ltd.	154kW	6200ml
D4.0NS6B170	Dongfeng Cummins Engine Co., Ltd.	125kW	4000ml
B6.2NS6B230	Dongfeng Cummins Engine Co., Ltd.	169kW	6200ml
YCS04200-68	Guangxi Yuchai Machinery Co., Ltd.	147kW	4156ml
YCS04160-68	Guangxi Yuchai Machinery Co., Ltd.	118kW	4156ml
YCY30165-60	Guangxi Yuchai Machinery Co., Ltd.	121kW	2970ml
YCS04180-68	Guangxi Yuchai Machinery Co., Ltd.	132kW	4156ml
D6.7NS6B230	Dongfeng Cummins Engine Co., Ltd.	169kW	6700ml
D4.5NS6B220	Dongfeng Cummins Engine Co., Ltd.	162kW	4500ml
D30TCIF1	Kunming Yunnei Power Co., Ltd.	125kW	2977ml
