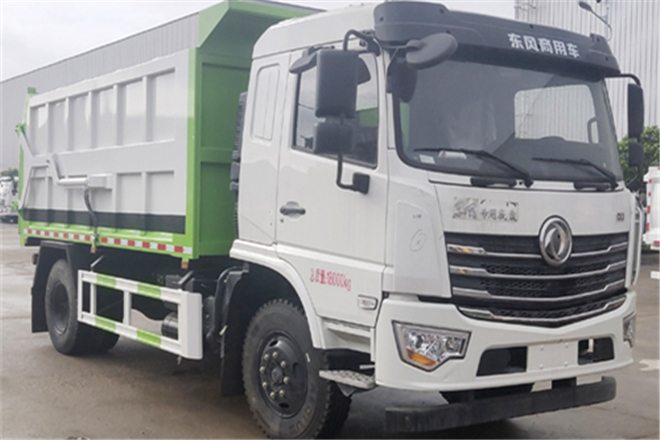

Suizhou Dongzheng SZD5183ZLJD6V Waste Transfer Truck

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2018 national Ⅵ emission standards
Length	6900,7800mm
Width	2500,2550mm
Height	3100mm
Curb Weight	7805kg
Gross Weight	18000kg
Seats	3,2
Max Speed	89km/h
Chassis
Chassis Model	DFV1183GDP6DJ1
Front/Rear Overhang	1440/1510,1440/1860mm
Number of Leaf Springs	8/10+7,8/10+8,11/11+10,3/4+3
Number of Axles	2
Wheelbase	3800,3950,4200,4500,4700,5100,5600,6000mm
Axle Load	6500/11500kg
Front Wheel Track	1810,1880,1940,1965,1910mm
Rear Wheel Track	1800,1820,1860mm
Approaching/Departuring Angle	21/18,21/15°
Tire
Number of Tires	6
Tire	10.00R20 18PR,275/80R22.5 18PR,10.00R20 16PR,11.00R20 16PR,11.00R20 18PR,295/80R22.5
Engine
Model	Brand	Power	Displacement
B6.2NS6B230	Dongfeng Cummins Engine Co., Ltd.	169kW	6200ml
D4.0NS6B170	Dongfeng Cummins Engine Co., Ltd.	125kW	4000ml
D4.5NS6B220	Dongfeng Cummins Engine Co., Ltd.	162kW	4500ml
B6.2NS6B210	Dongfeng Cummins Engine Co., Ltd.	154kW	6200ml
D6.7NS6B230	Dongfeng Cummins Engine Co., Ltd.	169kW	6700ml
D4.0NS6B195	Dongfeng Cummins Engine Co., Ltd.	143kW	4000ml
D4.5NS6B190	Dongfeng Cummins Engine Co., Ltd.	140kW	4500ml
YCS04200-68	Guangxi Yuchai Machinery Co., Ltd.	147kW	4156ml
YCS06245-60A	Guangxi Yuchai Machinery Co., Ltd.	180kW	6234ml
YCS06245-60	Guangxi Yuchai Machinery Co., Ltd.	180kW	6234ml
D30TCIF1	Kunming Yunnei Power Co., Ltd.	125kW	2977ml
YCS06220-60	Guangxi Yuchai Machinery Co., Ltd.	162kW	6234ml
D45TCIF1	Kunming Yunnei Power Co., Ltd.	162kW	4461ml
YCK05240-60	Guangxi Yuchai Machinery Co., Ltd.	176kW	5132ml
YCK05230-60	Guangxi Yuchai Machinery Co., Ltd.	169kW	5132ml
