| Basic Information | |||

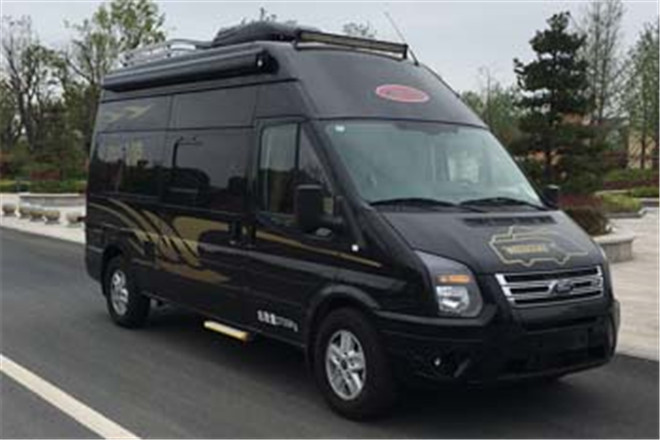

| Usage | Recreational Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5780,5940,5880,5990mm | ||
| Width | 2000,2050,2098mm | ||
| Height | 2590,2840,2680,2695,2715,2765,2805,2815,2855mm | ||
| Curb Weight | 3190kg | ||
| Gross Weight | 3700kg | ||
| Seats | 3-6 | ||
| Max Speed | 145km/h | ||
| Chassis | |||
| Chassis Model | JX5040XXYTJ-M5 | ||
| Front/Rear Overhang | 933/1097,933/1257,933/1197,933/1307mm | ||
| Number of Leaf Springs | -/2 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3750mm | ||
| Axle Load | 1700/2000kg | ||
| Front Wheel Track | 1740mm | ||
| Rear Wheel Track | 1704mm | ||
| Approaching/Departuring Angle | 22/24° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 215/75R16LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DURATORQ4D225H | Jiangling Motors Co., Ltd. | 100kW | 2198ml |
