| Basic Information | |||

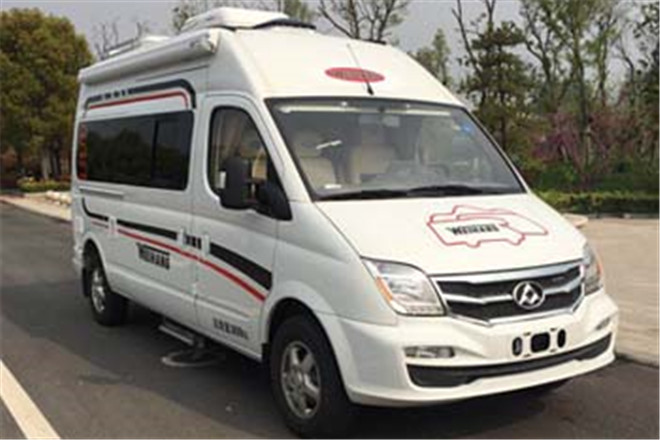

| Usage | Recreational Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5700,5785,5930,5830,5880mm | ||
| Width | 1998,2038,2098mm | ||
| Height | 2552,2645,2852,2605,2620,2690,2730,2740,2765,2780mm | ||
| Curb Weight | 3010kg | ||
| Gross Weight | 3800kg | ||
| Seats | 3-6 | ||
| Max Speed | 150km/h | ||
| Chassis | |||
| Chassis Model | SH5041XXYA9D5 | ||
| Front/Rear Overhang | 865/985,865/1070,865/1215,865/1115,865/1165mm | ||
| Number of Leaf Springs | -/2,-/3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3850mm | ||
| Axle Load | 1760/2040kg | ||
| Front Wheel Track | 1734mm | ||
| Rear Wheel Track | 1728mm | ||
| Approaching/Departuring Angle | 26/17° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 215/75R16LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| SC25R136.1Q5 | Shanghai Diesel Engine Co., Ltd. | 100kW | 2499ml |
