The refrigeration system adopts an independent Carrier chiller from the United States, which can cool down to -25℃ in an extremely short time. It also has a heating function, ensuring temperature control and freshness preservation even in winter, and achieving constant-temperature transportation throughout the year.
Supports 380V external power supply, continuously cools when parked, and ensures long-term heat preservation without worries. The interior of the compartment features five ventilation slots and a top ventilation and temperature distribution design, ensuring that the temperature of medicines and vaccines is evenly distributed at all points within the compartment, without any cold or hot dead zones. The rear door and side door are designed with a double-layer sealing of thickened thermal insulation cotton, effectively preventing heat exchange.
The top hook slide rail structure is detachable, which is convenient for cleaning and hanging items. The front and rear dual temperature and humidity recorders + protective covers monitor the temperature and humidity data throughout the process, meeting the requirements of the drug regulatory authority for full traceability of cold chain transportation.
The front and rear cameras inside the box and the front and rear cameras on the vehicle body provide all-round visual supervision of the transportation process, ensuring transportation safety and compliance. This is not an ordinary refrigerated truck, but a "mobile constant-temperature laboratory" tailor-made for the transportation standards of medicines and vaccines.

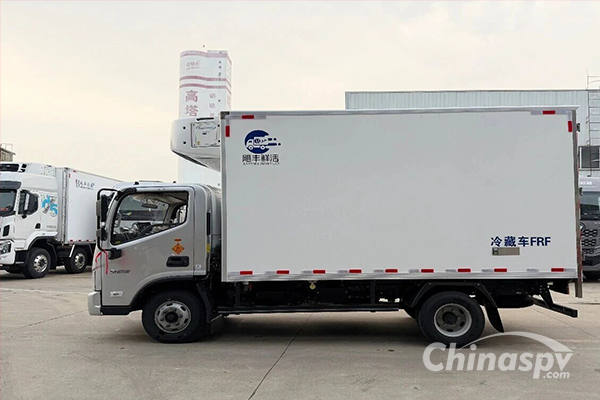

Strong power, easy to get on the road with a blue license plate. Overall vehicle dimensions: 5990×2250×3250mm; Box dimensions: 4080×2100×2100mm. Blue-plate vehicles can be driven with a C license, easy to register, and no restrictions on urban driving. In terms of power, it is equipped with a 2.5-liter 160-horsepower engine from Foton Cummins, paired with a 6-speed transmission from ZF, providing strong power output and excellent fuel consumption performance.
The chassis is equipped with a 5-ton rear axle, 7.00R16 steel wire tires, and a 3360 wheelbase, balancing stability and load capacity, allowing you to load more, run faster, and use for a longer time.
In terms of the cockpit, it is equipped with a vehicle networking system, cruise control, a multi-functional steering wheel, automatic light adjustment, power Windows, central locking, and remote key control. It is not only intelligent but also comfortable. Optional luxurious configurations such as airbag seats, seats with heating and ventilation functions, and electrically heated rearview mirrors are available. The front passenger seat can also be converted into a sleeper berth, allowing for easy rest even during long-distance transportation.
