| Basic Information | |||

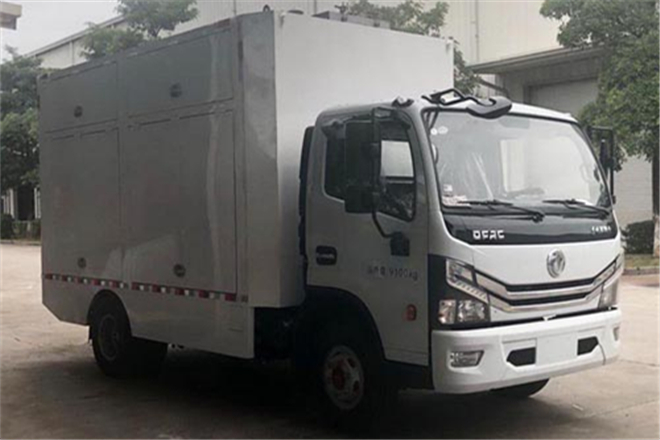

| Usage | Suction-type Sewer Scavenger | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 5995mm | ||
| Width | 2300mm | ||
| Height | 3160mm | ||
| Curb Weight | 8400kg | ||
| Gross Weight | 9100kg | ||
| Seats | 3 | ||
| Max Speed | 103km/h | ||
| Chassis | |||
| Chassis Model | EQ1095SJ8CD2 | ||
| Front/Rear Overhang | 1130/1557mm | ||
| Number of Leaf Springs | 8/10+7,12/12+9,6/6+5,3/8+6,3/3+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3308,3800,4400mm | ||
| Axle Load | 3300/5800kg | ||
| Front Wheel Track | 1745mm | ||
| Rear Wheel Track | 1586,1630, 1650,1800mm | ||
| Approaching/Departuring Angle | 25/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50R16LT 16PR,8.25R16LT 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YCY24140-60 | Guangxi Yuchai Machinery Co., Ltd. | 103kW | 2360ml |
| ZD30D16-6N | Dongfeng Light-duty Engine Co., Ltd. | 120kW | 2953ml |
| D25TCIF1 | Kunming Yunnei Power Co., Ltd. | 110kW | 2499ml |
| D30TCIF1 | Kunming Yunnei Power Co., Ltd. | 125kW | 2977ml |
| NV30-C6G | Dongfeng Chaoyang Diesel Co., Ltd. | 115kW | 2968ml |
| NV30-C6D | Dongfeng Chaoyang Diesel Co., Ltd. | 120kW | 2968ml |
| D4.0NS6B160 | Dongfeng Cummins Engine Co., Ltd. | 118kW | 4000ml |
| Q28-130E60 | Anhui Quanchai Power Co., Ltd. | 96kW | 2800ml |
| YCY30165-60 | Guangxi Yuchai Machinery Co., Ltd. | 121kW | 2970ml |
