| Basic Information | |||

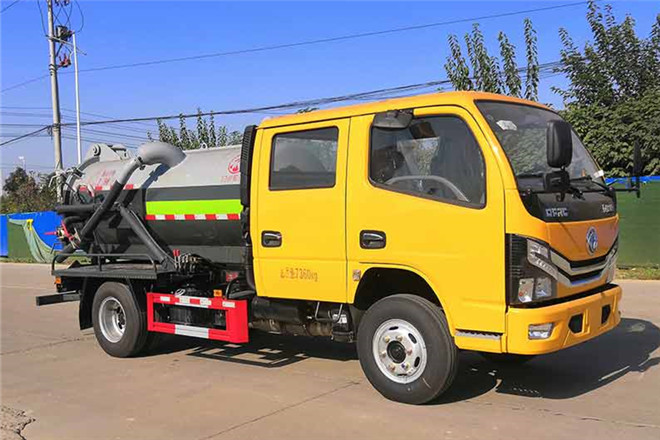

| Usage | Suction-type Sewer Scavenger | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2018 national Ⅵ emission standards | ||
| Length | 6200,6350mm | ||
| Width | 2000mm | ||
| Height | 2350,2200mm | ||
| Curb Weight | 4000kg | ||
| Gross Weight | 7360kg | ||
| Seats | 2+3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | EQ1075DJ3CDF | ||
| Front/Rear Overhang | 1040/1852,1055/1837,1040/2002,1055/1987mm | ||
| Number of Leaf Springs | 6/6+5,3/3+3,6/4+3,6/5+2,6/3+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3308mm | ||
| Axle Load | 2640/4720kg | ||
| Front Wheel Track | 1521mm | ||
| Rear Wheel Track | 1498,1586,1670mm | ||
| Approaching/Departuring Angle | 24/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16,7.00R16LT 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YCY24140-60 | Guangxi Yuchai Machinery Co., Ltd. | 103kW | 2360ml |
| Q28-130E60 | Anhui Quanchai Power Co., Ltd. | 96kW | 2800ml |
| Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 85kW | 2300ml |
| H20-120E60 | Anhui Quanchai Power Co., Ltd. | 90kW | 2000ml |
