position : Home>>products>>CLW5251ZYSD5 Compression Refuse Collector

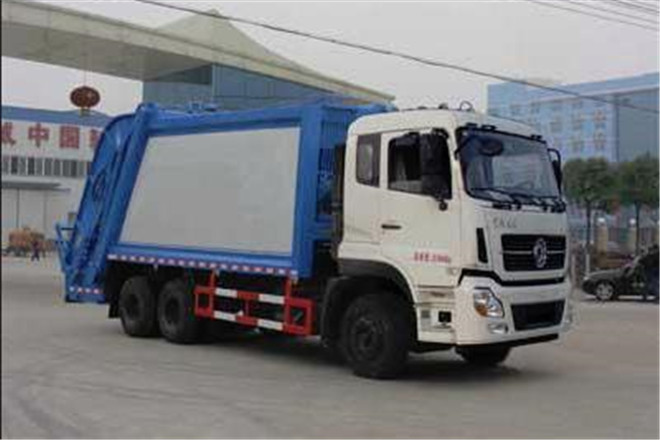

CLW5251ZYSD5 Compression Refuse Collector

CLW5251ZYSD5 Compression Refuse Collector
CLW5251ZYSD5 Compression Refuse Collector
Basic Information
Usage Refuse Collector
Fuel Type Diesel
Emission Standard GB3847-2005,GB17691-2005 national Ⅴ emission standards
Length 10500,10480,10300,10280mm
Width 2500mm
Height 3250mm
Curb Weight 16300kg
Gross Weight 25000kg
Seats 3
Max Speed 90km/h
Chassis
Chassis Model DFL1250A13
Front/Rear Overhang 1480/3300,1480/3100,1500/3300,1500/3100mm
Number of Leaf Springs 8/9,8/10,9/10
Number of Axles 3
Wheelbase 4350+1350,5350+1350,5700+1350,3800+1350mm
Axle Load 7000/18000(two axles)kg
Front Wheel Track 2040,1965mm
Rear Wheel Track 1860/1860,1880/1880mm
Approaching/Departuring Angle 18/12°
Tire
Number of Tires 10
Tire 11.00-20 18PR,11.00R20 18PR,295/80R22.5 18PR,12.00R20 16PR
Engine
Model Brand Power Displacement
ISD245 50 Dongfeng Cummins Engine Co., Ltd. 180kW 6700ml
ISD270 50 Dongfeng Cummins Engine Co., Ltd. 198kW 6700ml
DDi75S350-50 Dongfeng Trucks Co., Ltd. 257kW 7530ml
DDi75S245-50 Dongfeng Trucks Co., Ltd. 180kW 7530ml
DDi75S292-50 Dongfeng Trucks Co., Ltd. 215kW 7530ml
YC6JA240-50 Guangxi Yuchai Machinery Co., Ltd. 177kW 6870ml
